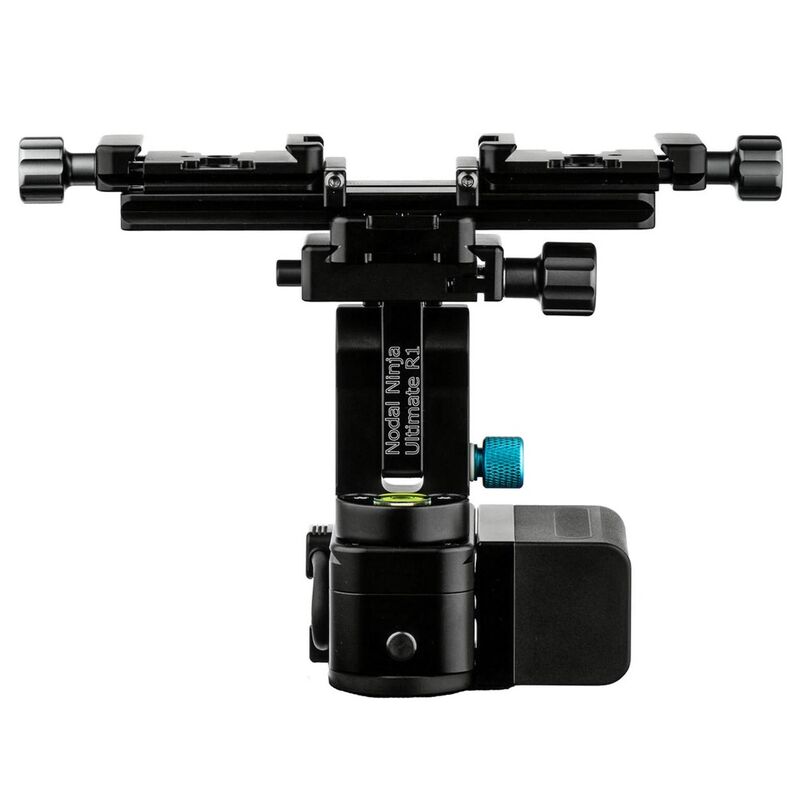

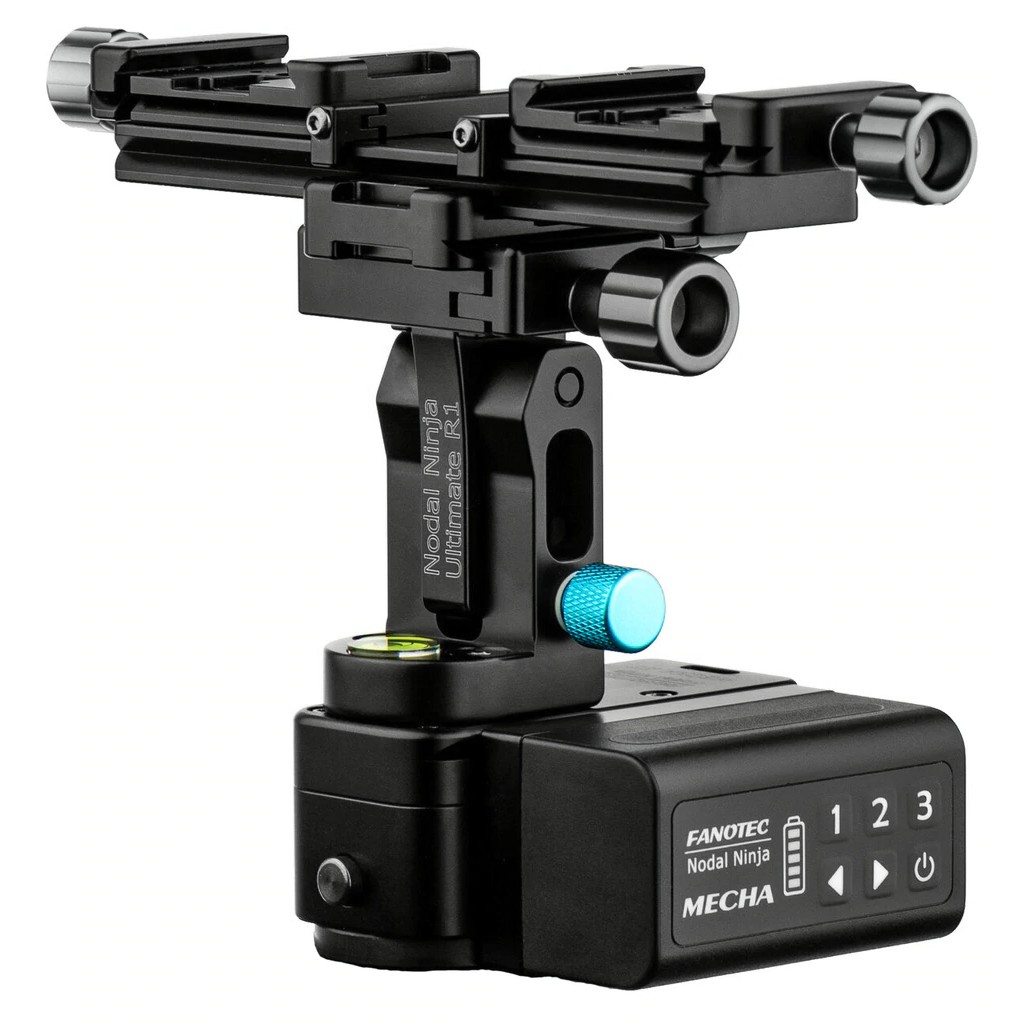

MECHA E1 / C1 with Stereoscopic Compact Dual Lens Ring mount

MECHA E1 / C1 with Stereoscopic Compact Dual Lens Ring mount
Fullscreen button

Lightweight With R1
675 g (23.81 oz)
Compact Size
86x76x41 mm
Large Payload
3 kg (6.6 lb)
High Capacity Battery
for Full Day Usage
2.4 GHz Wi-Fi
Remote Control
AUX Port
Ideal for Mirrorless
and Small DSLRs

Essential Not in the Box: Shutter Release Cable.

Product Variants1

MECHA E1 / C1 with Stereoscopic Compact Dual Lens Ring mount


  • SKU: F9905-8


Lens Rings not included. You can purchase them separately from here.

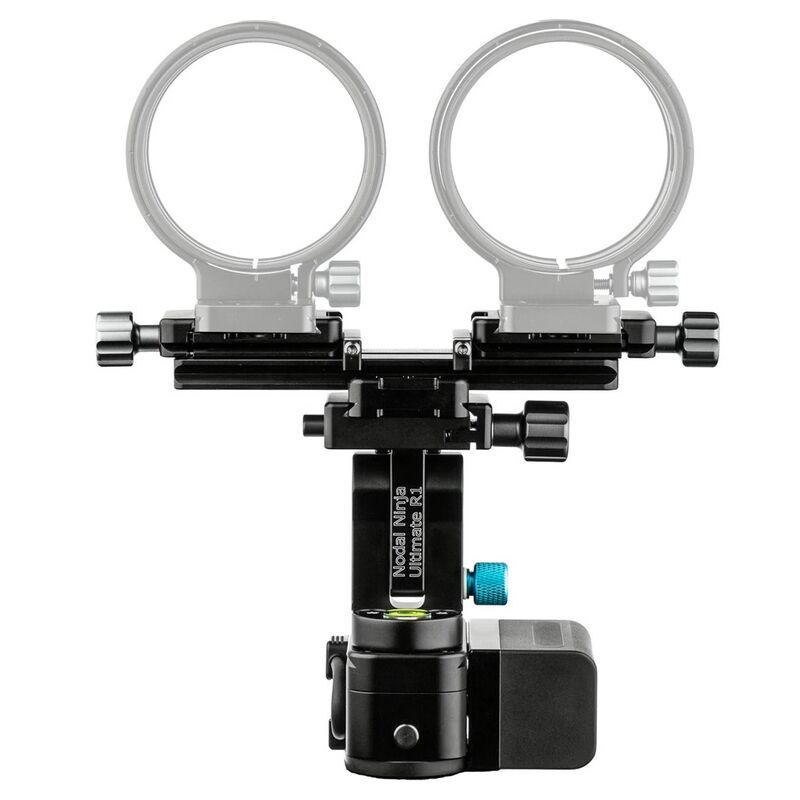

This set up allows for shooting 3D MECHA E1/C1 with Stereoscopic VR 360° images. Pairing with 2 QRC-38DS on the rail to form a compact dual lens ring mount stereo bracket to mimic an Inter-pupillary (center) distance of 2.4" (61mm) to 4" (104mm).

Product QR codeProduct QR code

Select Shutter Release Cables

Download Documents

All User Guides and Manuals
MECHA C1 Reference Card
Mecha Quick Reference Guide (QRG) Rotator E1 and Controller C1
MECHA C1 User's Guide
MECHA IR Remote Commander & Receiver
Remote Shutter Release Cable Compatibility List (compatible cameras)



Instructions and Tips for MECHA Users PLAYLIST

Motorized Panoramic Head – The MECHA PLAYLIST

Mecha Bundled Solutions for R1, R20, NN3 MKII, NN3 MK3 available with or without nadir adapters.

The motorized rotator head will support up to 3 kg (6.6 lb), including pano head. For use with NN3 MK2, NN3 MK3, R1, R10, R20, RS1, (heads sold separately). MECHA is lightweight, quiet and power efficient. Together with the Single Axis Controller C1 (F9910), it automates the panning axis of Nodal Ninja R1/10/20 series as well as the Nodal Ninja 3 MK2 and MK3 and the RS1. Together with a "dual-axis" controller, two E1 rotators can be added to motorize Nodal Ninja pan and tilt axes for multi-row application.

For description, please see the products that each bundle includes.

Essential Items NOT Included:

  • Fanotec Multi-cam Trigger for Simultaneous Shutter Release
  • Two Shutter Release Cable for Single-Axis MECHA
  • One F9980-1 Cable for Connecting MECHA to Multi-cam Trigger

Recommended Accessories:

  • PC Sync Cable for Shutter Release Confirmation
  • Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.

MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.

14-day money-back guarantee.

1-year factory warranty.


  • Bearing and gear are classified as consumables and not covered by warranty (for more details please see description of the Fanotec MECHA product).

For product suggestions/concerns and support please visit our forum.

Using a Smartphone to Access the MECHA User Interface for Dual Axis and Single Axis Controllers

MECHA, the Best Companion for Your R1
