Nodal Ninja Panoramic Photography Equipment
Years since 2004

Accessories » Clamps and Plates

Arca-Swiss Style Screw-Knob Clamp 38mm (QRC-38DS)

Arca-Swiss Style Screw-Knob Clamp 38mm (QRC-38DS)
Fullscreen button
Product Variants1

Arca-Swiss Style Screw-Knob Clamp 38mm (QRC-38DS)

  • SKU: F2013
  • UPC Code: 641378090141

Product QR codeProduct QR code

Download Documents

All User Guides and Manuals

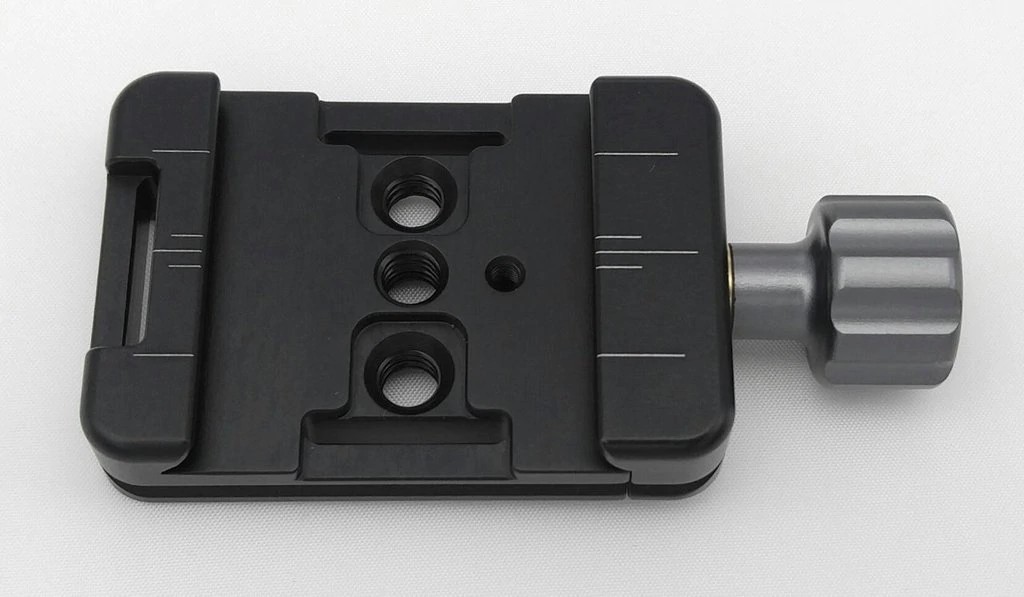

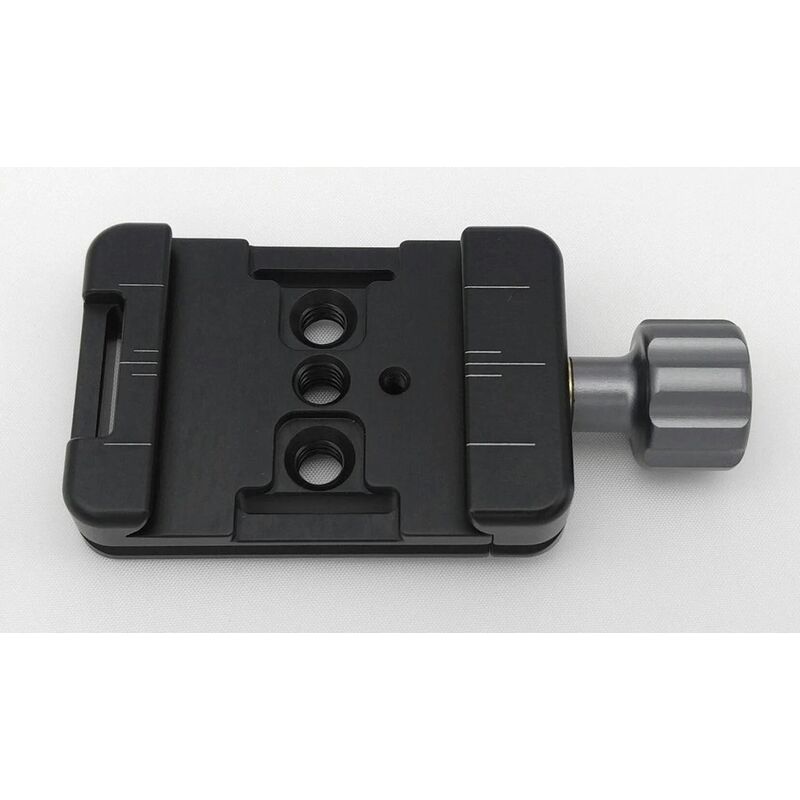

Screw-knob Mini Clamp, 38mm jaws.

Low profile, only 8mm thick (excluding jaws).

Central 1/4"-20 threaded socket for mounting on a lens plate or MFR rail or a sling strap.

Two 1/4"-20 countersunk threaded sockets separated by 18mm for mounting on a Rotator Mini or the Advanced Rotator D10 (two M5x14mm flat head screws) are needed, to be ordered separately).

3 strap bosses for attaching camera neck straps or sling.

Bottom dovetail perpendicular to the upper jaws for mounting in another Arca Style clamp to change dovetail orientation.

2 clamps can be mounted on our 120mm Lens Plate (F8173) to form a compact dual lens ring mount stereo bracket to mimic an Interpupillary distance (IPD) of 55-83mm (2.16"-3.27").
