Panoramic Hardware » Automated MECHA

MECHA Controller C1 With Rotator E1

MECHA Controller C1 With Rotator E1
Fullscreen button

Lightweight
500 g (17.64 oz)
Compact Size
86x76x41 mm
Large Payload
3 kg (6.6 lb)
High Capacity Battery
for Full Day Usage
2.4 GHz Wi-Fi
Remote Control
Multipurpose
AUX Port
Ideal for Mirrorless
and Small DSLRs


Essential Not in the Box: Shutter Release Cable.


Product Variants1
1

MECHA Controller C1 With Rotator E1

US$259.95
Price: $299.95Save $40.00

20OFF at checkout
  • SKU: F9905
  • Size: 86x76x41 mm (3.39x1.50x1.57 in)
  • Weight: 500 g (17.64 oz)
  • UPC Code: 641378088308


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals
MECHA C1 Reference Card
Mecha Quick Reference Guide (QRG) Rotator E1 and Controller C1
MECHA C1 User's Guide
MECHA IR Remote Commander & Receiver
Remote Shutter Release Cable Compatibility List (compatible cameras)

Videos


MECHA Single Axis PLAYLIST


Instructions and Tips for MECHA Users PLAYLIST


Motorized Panoramic Head – The MECHA PLAYLIST

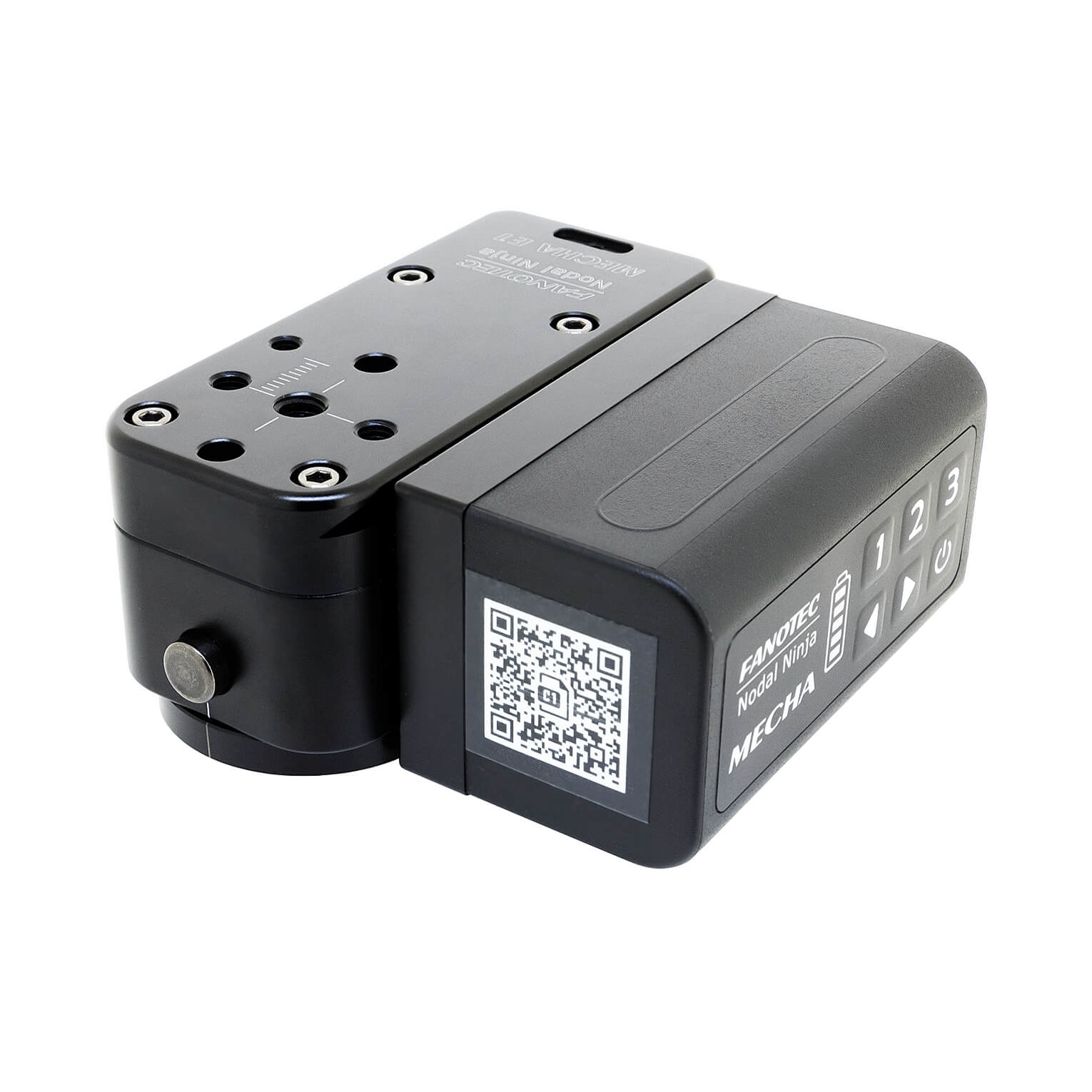

MECHA Controller C1 With Rotator E1

MECHA E1 Rotator Features:

  • Compact and lightweight, 86x38x40 mm and 315 g (3.39x1.50x1.57 in and 11.11 oz).
  • Robust construction to support large payload, 3 kg (6.6 lb) vertical loading (excluding pano head).
  • High turning torque, 16 kg-cm (13.9 lb-in).
  • High efficiency and low power consumption.
  • High resolution, 0.05 degrees minimum rotation angle.
    Relatively low gear backlash which can be compensated by a friction ring.
  • Suitable for shooting 360° panoramas and high-resolution gigapixel images.

MECHA Single Axis Controller Features:

  • Supports one MECHA rotator.
  • Compact controller with built in battery and charger.
  • NCR18650GA high capacity batteries, 7.2v, 3350mAh, 12Wh.
  • WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
  • Supports linking and controlling multiple controllers via 2.4 GHz Wi-Fi , connection via a Wi-Fi access point, over the air firmware upgrade and remote control over the internet.
  • 3 buttons to run presets stored in the memory, which can be configured via the web page interface.
  • 5 LED's to indicate the remaining battery capacity.
  • CAM port with opto-isolated trigger for focus and shutter release.
  • Multipurpose AUX port (to be implemented with future firmware upgrade) for shutter confirmation, Radio Frequency Start/Stop remote trigger, wired Start/Stop trigger or IR remote emitter etc.

Total weight of MECHA Rotator E1 + Single Axis Controller C1 approx. 17.64 oz (500 g).

F9905 Package Includes:

  • One MECHA E1 Rotator
  • One MECHA C1 Controller
  • One Micro USB Charging Cable
  • Miscellaneous Spare and Extras for Customization and Creative Use

Essential Items NOT Included:

  • One Short Shutter Release Cable for Single-Axis MECHA

Recommended Accessories:

  • PC Sync Cable for Shutter Release Confirmation
  • Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.


MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.


14-day money-back guarantee.

1-year factory warranty.

For product suggestions/concerns and support please visit our forum.



Motorized Panoramic Head – The MECHA


Motorized Mecha Head with Turntable for Shooting 360° VR Product Photography
