Google R20 v2 w/ RM4 Pkg

Google R20 v2 w/ RM4 Pkg
Fullscreen button
Product Variants3
1

Google R20 v2 w/ RM4 Pkg: Lens Ring for Canon 8-15mm

US$270.00

  • SKU: F0010-1
  • Weight: 0.295g
  • UPC Code: 641378088261
2

Google R20 v2 w/ RM4 Pkg: Lens Ring for Sigma 8mm for Nikon

US$270.00

  • SKU: F0010-2
  • Weight: 0.295g
  • UPC Code: 641378088278
3

Google R20 v2 w/ RM4 Pkg: Lens Ring for Sigma 8mm F3.5 for Canon

US$270.00

  • SKU: F0010-3
  • Weight: 0.29g
  • UPC Code: 641378088285


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals
QRG V2 Lens Ring for Canon 8-15mm
QRG V2 Lens Ring for Sigma 8mm Canon Mount
QRG – GTP with R10 (Google Trusted Photographers)
QRG – GTP R10 Package for Sigma 8mm f/3.5 for Canon
QRG – GTP R10 Package for Sigma 8mm f/3.5 for Nikon
QRG – GTP R10 Package for Canon EF 8-15mm

Level: Google Photographers.

Lenses: Fisheye 8-15mm.

Features: Smallest Pano Head, fits in pocket, repeatable results, fits to lens not camera

Uses: 360x180 Spherical Panoramas, Google Street Views, Google Business Views, Real Estate

Cameras: Any - fit based on lens


THE SMALL JUST GOT SMALLER


If you are thinking of becoming a Google Business Photo Photographer, aka Google Trusted Photographer, we have 'the' perfect solution for you. Introducing the Google Ultimate R20 Static Tilt Head & Rotator Mini V2 Package. This is a single row panoramic head designed for use with circular and full frame fisheye lenses. Built exclusively for the Google Trusted Photographer this head is smaller, lighter, precise and much less expensive than similar heads on the market. Precision so exact, users are capable of repeatable results. Our products are built with the highest quality materials, ensuring you the highest quality imagery. Of the models authorized for use in the Google Business Photos program, only one - the R10, is the recommended. All products are backed by our industry leading support.


NOW SHIPPING WITH NEW V2 LENS RING WITH VIEWABLE FOCUS WINDOW


Testimonial from Google's Operations Lead Person

"Thank you for the product update and the impeccable customer service you provide us and our GTP's..... It really shows that Nodal Ninja truly stands behind their product and customer service."


When purchasing the GTP Package you have the option to select the appropriate ring for your camera lens. The ring clamp mounts directly onto the lens itself, freeing up the camera. Different cameras can also be used on the same lens without adjusting any settings. The package comes fully assembled - no tools required for setup.


GOOGLE SETTINGS:

ALL GOOGLE TRUSTED PHOTOGRAPHER PKG'S ARE PRESET AT OUR SHIPPING CENTER. HOWEVER, WE DO ASK CUSTOMERS TO DOUBLE CHECK THE UNIT FOR THE CORRECT SETTINGS SHOWN HERE:


Sigma 8mm F3.5 Canon V2. Stop Plate 201. LRP40 NPP = 0.925

Sigma 8mm F3.5 Nikon V2. Stop Plate 202. LRP45X2 NPP = 1.825

Canon 8-15mm F4 V2. Stop Plate 203. LRP45X2 NPP = 2.5

Sigma 8mm F3.5 Nikon Mount (not V2 Lens Ring) = 1.4.

Sigma 8mm F3.5 Canon Mount (not V2 Lens Ring) = 0.85.

Canon 8-15mm @8mm (not V2 lens Ring) = 1.8.

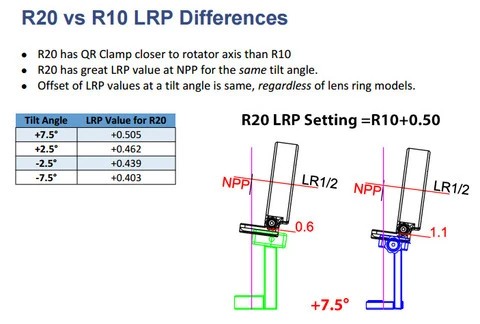

R20 vs R10 LRP Differences


Features and Highlights:


Arca Swiss Compatible quick release design.

Modular design.

Lens clamp mounted to lens.

Different cameras can be use on the same lens without adjusting any settings.

Compact and light weight.

Easy to use.

Small nadir footprint.

Spirit level that allows rotation to the side and back for better viewing.

Rail stop that is integrated into the Lens Ring Plate.

15 day money back guarantee.


Rotator Mini Features:


Compact and light weight, 46mm diameter and 88g (vs. RD4/5 220g).

Smooth rotation with lubricated bearings.

Interchangeable detent ring.

Rotator lock for use on pole.


Notes: images shown may vary slightly from actual product.

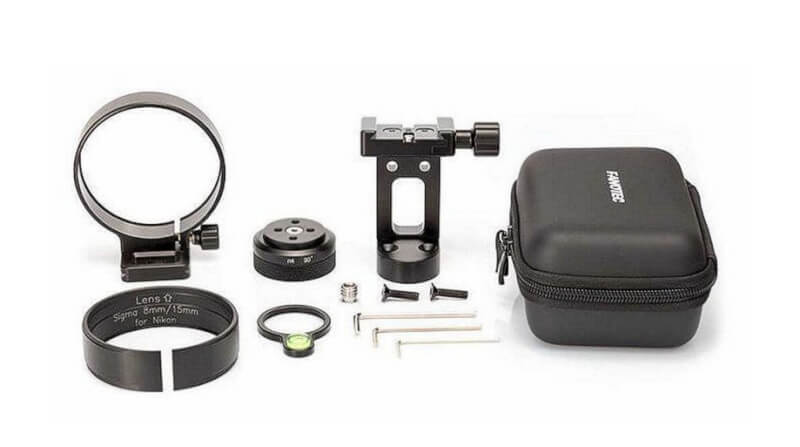

Includes: R20 Head, Arca swiss style V2 lens ring clamp, Rotator Mini (RM4) with center column extension, compass, 3/8"-1/4" thread adapter, hex key, Neoprene pouch + misc.


Positive attributes over other similar products
Model R20/RM4
1. Weight 295 grams
2. Supporting Lenses 30+
3. Tilt Options 2
4. Number of "interchangeable" detent rings 12
5. Lightweight aluminum rotator base yes
6. Inexpensive upgrade path for swapping out select lenses (as low as $9.95) yes
7. Lens clamp attaches without need for hex key yes
8. Graduated scale marking for use with different lenses yes
9. Arca Swiss style quick release system yes
10. Wide plastic "lens protector" inner ring yes
11. Rotator lock screw to allow for use on poles yes
12. Modular design yes
13. Ability to swap out tilt option yes
14. Ability to swap out lens clamp option yes
15. Ability to swap out lens clamp rail yes
16. Free 3/8" - 1/4" thread adapter yes
17. Free Neoprene protective pouch yes
18. Free Lens Plate Stop (pre-installed) yes
19. Free built in Compass yes
20. Lens mount can be used with other pano heads or 3rd party equipment yes
21. Knob tightened to lessen risk of accidental release yes
22. Tools NOT required for initial setup yes
23. Google's 'recommened' pick yes
24. Price US$270.00


This package is designed exclusively for the Google Trusted Photographer, however anyone may purchase this package.

Tilt Angle LRP Value for R20 Compared to R10
+7.5° 0.53
+2.5° 0.49
-2.5° 0.47
-7.5° 0.43
How to Mount a Lens Ring onto the R Series Panorama Tripod Heads
