Panoramic Hardware » Automated MECHA

Single Axis MECHA E1-C1

Single Axis MECHA E1-C1
Fullscreen button

Compact &
lightweight
Large payload
& high torque
High-capacity battery
for full-day usage
2.4 GHz Wi-Fi
remote control
Automated trigger
of shutter release
Multipurpose
AUX port
Shutter release confirmation
for supported cameras
Ideal for shooting
on slippery surface
Ideal for mirrorless
and small DSLRs


Essential NOT in the box: shutter release cable.


Product Variants2
1
2


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals
MECHA C1 Reference Card
Mecha Quick Reference Guide (QRG) Rotator E1 and Controller C1
MECHA C1 User's Guide
MECHA IR Remote Commander & Receiver
Remote Shutter Release Cable Compatibility List (compatible cameras)

Videos


MECHA Single Axis PLAYLIST


Instructions and Tips for MECHA Users PLAYLIST


Motorized Panoramic Head – The MECHA PLAYLIST

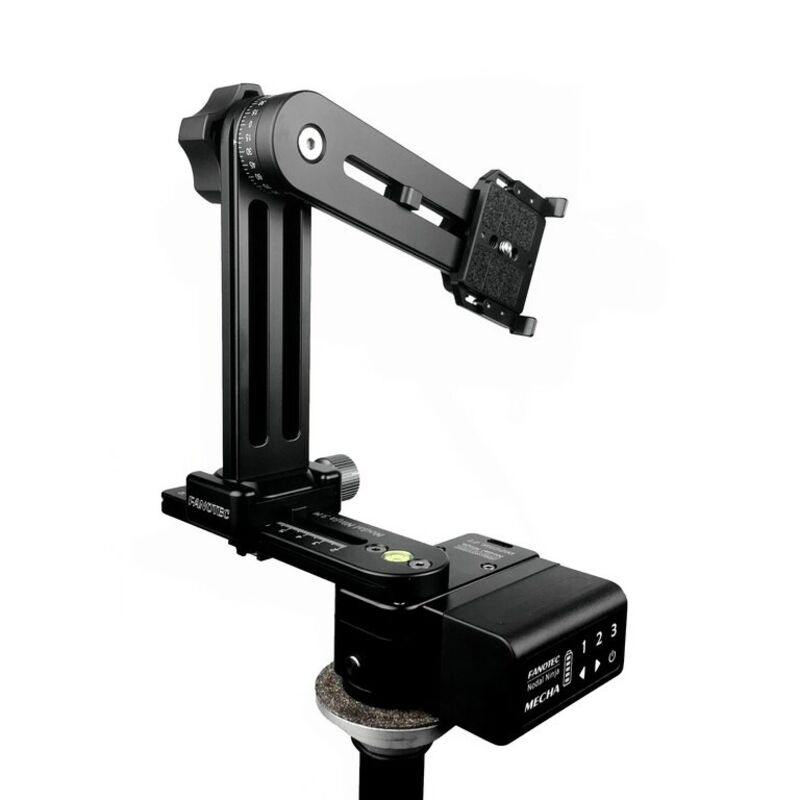

Single Axis MECHA Automated Solution for Nodal Ninja 3 MK2, MK3 or Nodal Ninja RS1

The motorized MECHA E1 rotator will support up to 6.6bs (3kg), including the pano head above it. It is lightweight, quiet and power efficient. Together with a single axis Controller C1 (F9910), it automates the panning axis of supported Nodal Ninjas
Another set of E1 rotator and C1 controller can be added to motorize Nodal Ninja MK3 tilt axis for multi-row applications.

MECHA E1 is NOT recommended for larger Nodal Ninjas (NN6 and M Series) unless only a small camera and lens are used.


Essential Items NOT Included:

  • One Long Shutter Release Cable for Dual-Axis MECHA

Recommended Accessories:

  • PC Sync Cable for Shutter Release Confirmation
  • Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.


MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.


14-day money-back guarantee.

1-year factory warranty.

For product suggestions/concerns and support please visit our forum.

Disclaimers:

Bearing and gear are classified as consumables and not covered by warranty. Their lifetime have been thoroughly tested for the rated loads. Any wearing will be a result of long time overloading or misuse.
