Single-Axis MECHA Controller C1

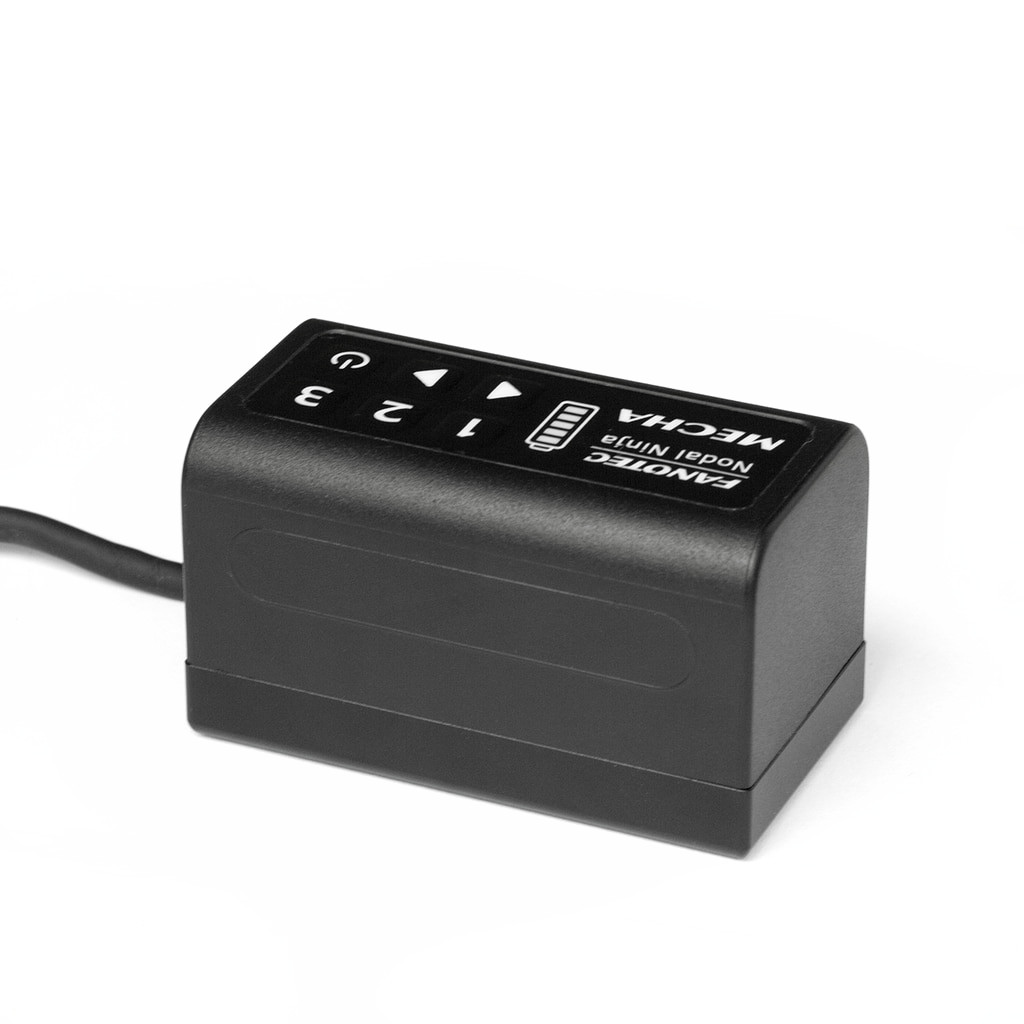

Single-Axis MECHA Controller C1
Fullscreen button›‹

Compact and
Light Weight Built-in Battery
and Charger Battery for Full
Day Usage Ideal Companion for
R1/10/20 Pano Head 2.4 GHz WiFi
Remote Control CAM Port for Focus
and Shutter Release Multipurpose
AUX Port

Product Variants1
1

Single-Axis MECHA Controller C1

US$144.95
Price: $169.95Save $25.00
Add to Cart

  • SKU: F9910
  • Size: 71x38x41mm
  • Weight: 185g
  • UPC Code: 641378088384

No Shutter Release Cable Included.

Please order one for single-axis or dual-axis MECHA if you don't have one already.

Get a cable for dual-axis when the controller is used for the tilt axis.



Product QR codeProduct QR code

Download Documents

All User Guides and Manuals
MECHA C1 Reference Card
pdf html
Mecha Quick Reference Guide (QRG) Rotator E1 and Controller C1
pdf html
MECHA C1 User's Guide
epub pdf html
MECHA IR Remote Commander & Receiver
pdf html
Remote Shutter Release Cable Compatibility List (compatible cameras)
html

Videos

MECHA Single Axis PLAYLIST

MECHA Dual Axis Combo – DAC PLAYLIST

Instructions and Tips for MECHA Users PLAYLIST

Motorized Panoramic Head – The MECHA PLAYLIST



MECHA Controller C1 Features:

  • Controlling one MECHA rotator.
  • Compact design with built-in battery and charger.
  • Ideal companion for R1/10/20 single row pano heads.
  • High capacity battery for full day usage (NCR18650GA, 7.2V, 3350mAh, 12Wh).
  • Support USB power bank or regulated 5V 2A DC supply for continuous operation.
  • 5 LED's to indicate the remaining battery capacity, button interaction and status feedback.
  • 3 buttons to run presets stored in the memory, which can be configured via the web page interface.
  • WiFi (2.4 GHz only) remote control from smartphones, tablets, PCs by using simple web page interface.
  • Connection via a WiFi access point and remote control over the internet.
  • Over-the-air firmware update.
  • Linking and controlling 2 Controller C1s via WiFi for dual-axis operation (DAC mode).
  • CAM port to trigger camera focus and shutter release.
  • Support any camera with a wired remote release port.
  • Multipurpose AUX port for:
    1 commanding MECHA Start/Stop and other functions with a wired or wireless RF remote.
    2commanding MECHA various functions with NN IR remote.
    3triggering a camera with an IR remote emitter.
    4camera shutter release confirmation.

MECHA is compatible with cameras having a wired remote port. Use the camera filter to check compatibily and choose the right cable for your camera.
MECHA only triggers the camera. It acts like a typical remote shutter release. There is no communication with the camera.


14 day money back guarantee.

1 year factory warranty.
