Dual Axis Mecha C2-E1 With NN3 MK2

Dual Axis Mecha C2-E1 With NN3 MK2
Fullscreen button

Low cost dual axis
pan tilt head solution
Support camera/lens
up to 2.0 kg (4.4 lb)
Support turning torque
up to 16 kg-cm (13.9 lb-in)
Ideal for mirrorless
and small DSLRs
Shoot 360° panoramas
and gigapixel images

Essential Not in the Box: Shutter Release Cable, Batteries and Charger.

Product Variants3

Dual Axis Mecha C2-E1 With NN3 MK2

Price: $459.95Save $110.00

  • SKU: F9920
  • Weight: 1310.00g
  • UPC Code: 641378090325

We CANNOT ship Li ion batteries without an equiment in the same package. Battery alone is classified as dangerous goods by IATA.

If you need NP-F550 / NP-F570 batteries, make sure to include them.


Dual Axis Mecha C2-E1 With NN3 MK2: Without Lower Rotator E1

Price: $329.95Save $90.00

  • SKU: F9920-1
  • Weight: 987.00g
  • UPC Code: 641378090394

For owners of one MECHA E1 (F9900) only.


Dual Axis Mecha C2-E1 With NN3 MK2: Without Lower and Upper Rotator E1

Price: $199.95Save $70.00

  • SKU: F9920-2

For owners of two MECHA E1 (F9900) only.

Product QR codeProduct QR code

Download Documents

All User Guides and Manuals
MECHA C2 Reference Card
MECHA C2 User's Guide
MECHA IR Remote Commander & Receiver
Remote Shutter Release Cable Compatibility List (compatible cameras)


Dual-Axis MECHA C2 Combos – Installation PLAYLIST


Motorized Panoramic Head – The MECHA PLAYLIST

Dual Axis MECHA C2 Controller

Here comes the MECHA C2 controller, a dedicated dual axis controller with an OLED display and external battery. The display can guide you through all the major operations and settings, making C2 much more intuitive than the single axis C1 controller with LED indicators only.

The use of external battery means you can carry spare batteries and quickly refuel MECHA before or during a shooting session.

A power cable splitter (optional) is available for using 2 sets of batteries at the same time for extended operation and / or changing batteries without a pause.

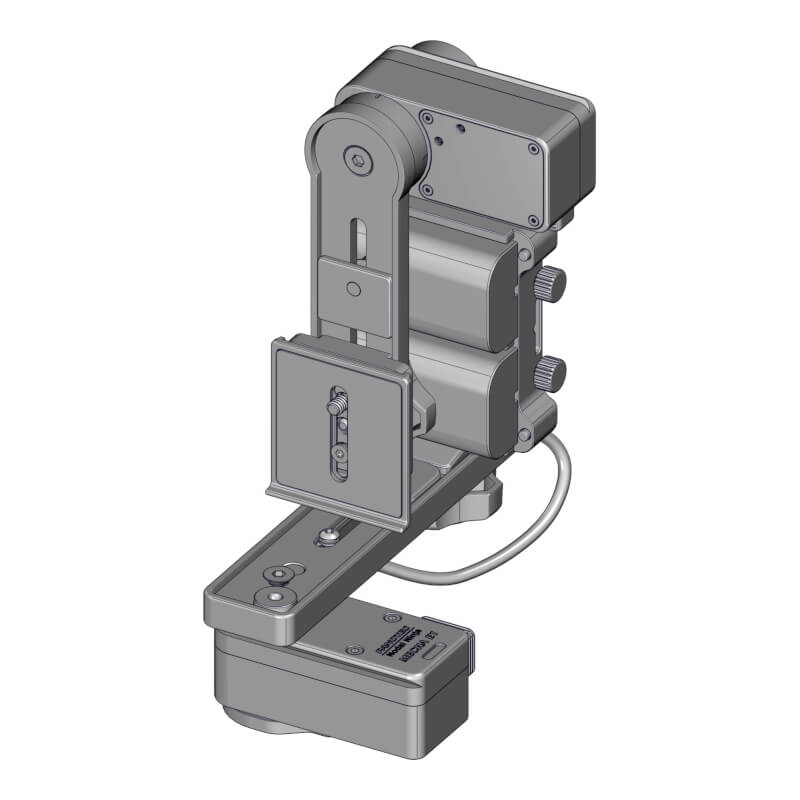

Dual Axis Mecha C2-E1 w/NN3 MK2

Finally a compact and very affordable dual axis pan tilt head solution. We use parts from NN3 MK2, RS2 lower rail, together with 2 MECHA E1 rotators, a C2 controller and a dual battery holder.

Use as a single axis horizontal rotator for single row shooting of turntable object VR. Or use as a dual axis rotator for both horizontal and vertical movements. The MECHA C2 and E1 being modular in design will be compatible with future Mecha rotators and controllers paving the way for future low-cost upgrades.
This setup supports a camera/lens up to 2 kg (4.4 lb) and a turning torque of 16 kg-cm (13.9 lb-in). NPP adjustment is up to 105mm from the pivot point. It is ideal for mirror-less, compact and lighter DSLR cameras. Shoot 360° panoramas or even high-resolution gigapixel images.

F9920 Package Includes:

  • Two MECHA E1 Rotator (F9900)
  • One MECHA C2 Controller (F9910)
  • One Modified NN RS2 Lower Rail
  • One NN3 MK2 Upper Rail with Camera Mounting Plate and Knob
  • One NN3 MK2 Vertical Rail
  • One Dual Battery Holder (2-Piece Bottom-to-Bottom) (F9943)
  • One Carrying Case (F9986-1)
  • Miscellaneous Spare and Extras for Customization and Creative Applications

Essential Items NOT Included:

  • Two NP-F550 Type Batteries and a Charger
  • One Long Shutter Release Cable for Dual-Axis MECHA

We CANNOT ship Li ion batteries without an equiment in the same package. Battery alone is classified as dangerous goods by IATA.

If you don't have NP-F550 / NP-F570 batteries and can't source them locally, make sure you add them to your MECHA order. A maximum of 3 sets of batteries are allowed by IATA rule.

Recommended Accessories:

  • PC Sync Cable for Shutter Release Confirmation (F9981)
  • Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.

MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.

14-day money-back guarantee.

1-year factory warranty.

For product suggestions/concerns and support please visit our forum.

Power On and Test – MECHA C2

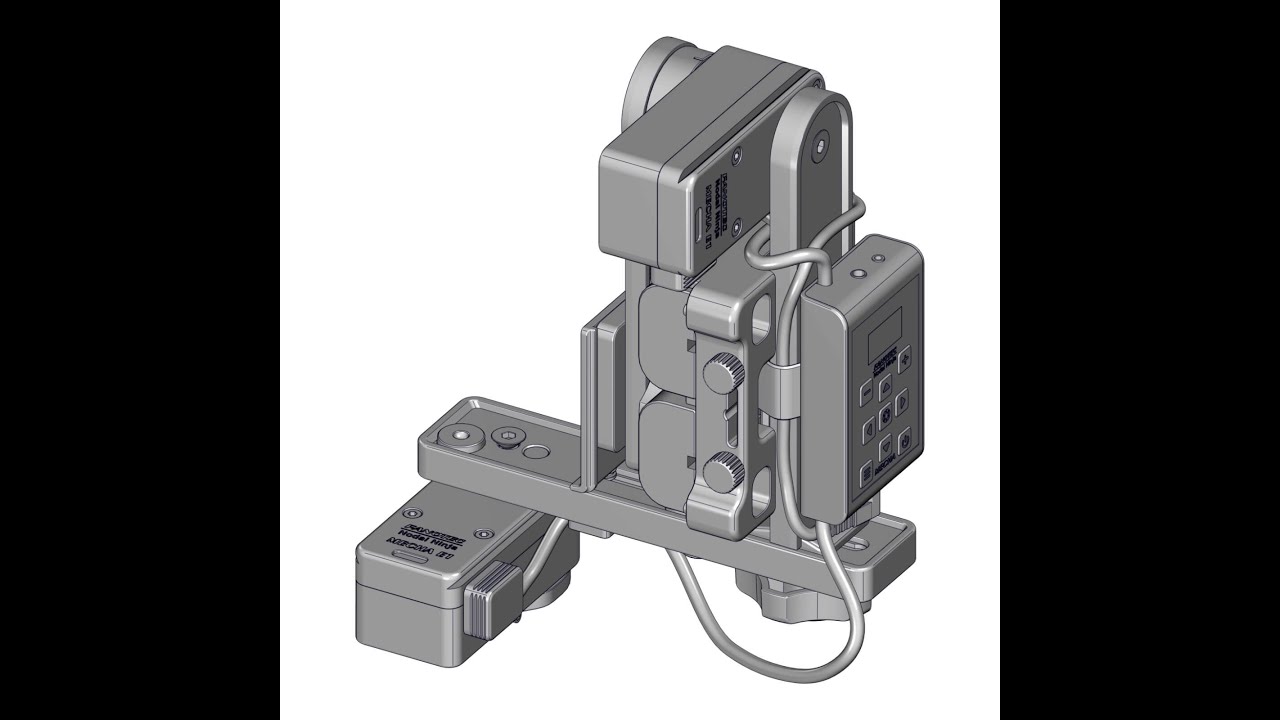

Installation Instruction for Dual Axis Mecha C2-E1 With NN3 MK2 (F9920) First Batch

Log in to write a Testimonial, or send us your Testimonial via the contact form

View all

1 Question

1 ANSWER when using TRIGGER can I take photos with a mobile phone?

Asked by Andy Mikus on 2023-05-17

You need a Bluetooth Smartphone Camera Trigger for MECHA.

Answered by Staff on 2023-05-17
