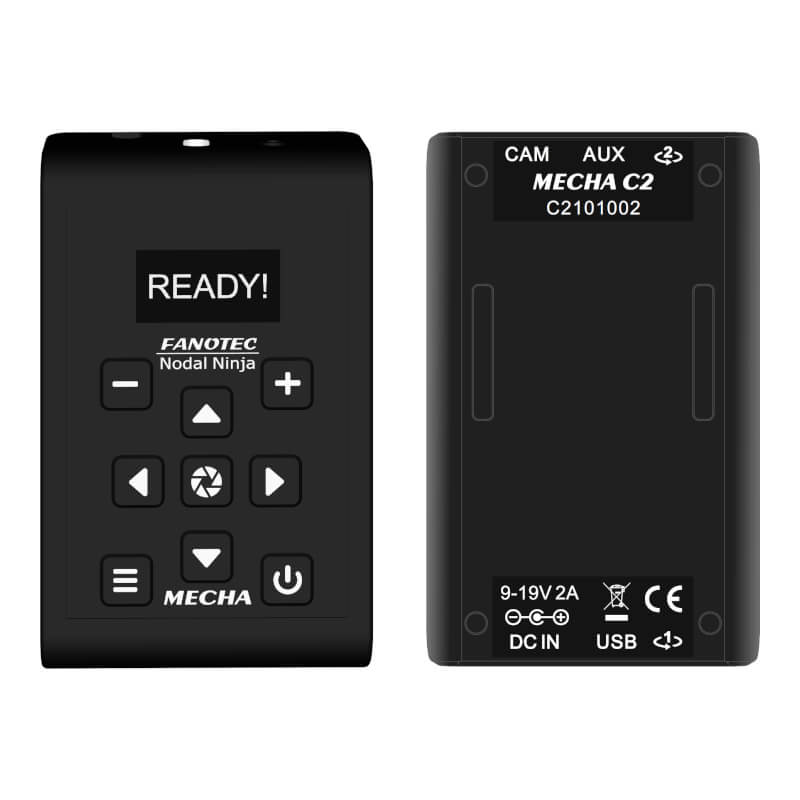

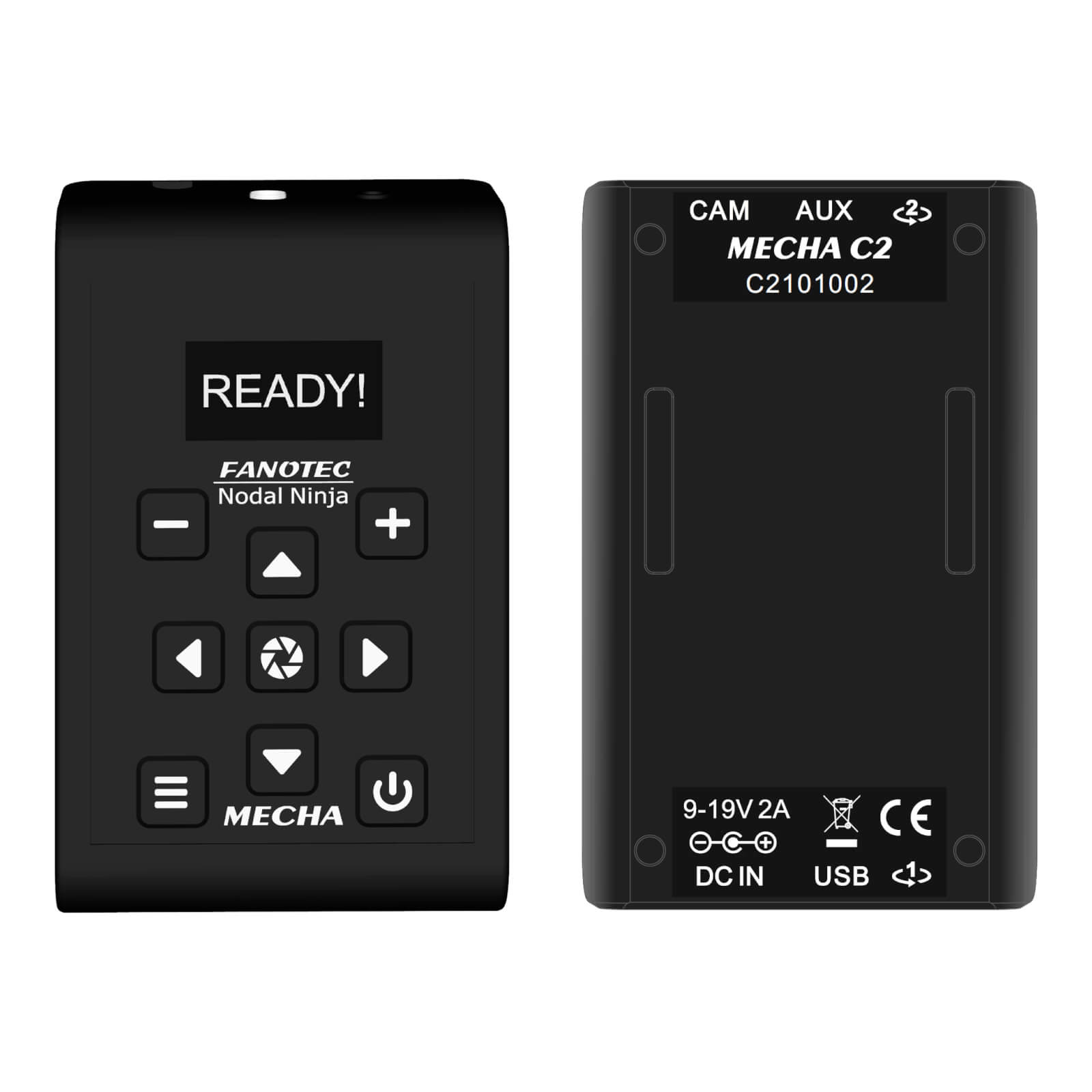

Dual Axis MECHA Controller C2

Dual Axis MECHA Controller C2
Fullscreen button

Dual Axis
Compact with
OLED Display
External DC
Power Input
2.4 GHz Wi-Fi
Remote Control
CAM Port for Focus
and Shutter Release
AUX port

Essential Not in the Box: Shutter Release Cable.

Product Variants1

Dual Axis MECHA Controller C2

Price: $119.95Save $30.00

  • SKU: F9911
  • Size: 80 x 50 x 20 mm
  • Weight: 85g
  • UPC Code: 641378088391

No Shutter Release Cable Included.

Please order one for dual axis MECHA if you don't have one already.

Product QR codeProduct QR code

Select Shutter Release Cables

Download Documents

All User Guides and Manuals
MECHA C2 Reference Card
MECHA C2 User's Guide
MECHA IR Remote Commander & Receiver
Remote Shutter Release Cable Compatibility List (compatible cameras)



Motorized Panoramic Head – The MECHA PLAYLIST

MECHA Controller C2 Features:

  • Controlling two MECHA rotators.
  • Compact with an OLED display.
  • 9 buttons for controls and inputs, including a button to trigger camera shutter release.
  • Shortcut keys to run presets stored in the memory, which can be configured via the web page interface.
  • 2.4 GHz WiFi remote control from smartphones, tablets, PCs by using simple web page interface.
  • Connection via a WiFi access point and remote control over the internet.
  • Over-the-air firmware update.
  • Linking and controlling multiple controllers via WiFi (future firmware development).
  • External power input (DC 9-19V, 2A rated, plug 1.7x4.0x9.5mm) for use with different battery packs, or regulated power supplies for continuous operation.
  • CAM port to trigger camera focus and shutter release.
  • Support any camera with a wired remote release port.
  • Multipurpose AUX port for:
    1commanding MECHA Start/Stop and other functions with a wired or wireless RF remote
    2commanding MECHA various functions with NN IR remote
    3triggering a camera with an IR remote emitter
    4camera shutter release confirmation

Essential Items NOT Included:

  • One Short Shutter Release Cable for Single-Axis MECHA

Recommended Accessories:

  • PC Sync Cable for Shutter Release Confirmation
  • Hot Shoe to PC Sync Adapter (for Cameras without PC Sync Port)

MECHA is compatible with cameras having a wired remote port. Use the Select Shutter Release Cables filter to check compatibility and choose the right cable for your camera.

MECHA can only trigger the camera. It acts like a typical remote shutter release. Auto exposure bracketing is done by the camera.

14-day money-back guarantee.

1-year factory warranty.
