Pole Series 2

Pole Series 2
Fullscreen button

Compact
Fits most cars
Level
Semi Pro
Extends from
3.8'/118cm - 19.5'/6m
Uses: Real Estate, Aerial 360's,
General Aerial Photography, Events
Cameras
Ultra Compact, Compact, Compact DSLR
Recommended loading
2kg (4.4lbs) for all poles

Product Variants3
1

Pole Series 2: Upper + Lower

US$600.00

  • SKU: F7105
  • Size: 315cm
  • Weight: 1.841g
  • UPC Code: 689466527766
2

Pole Series 2: Upper Unit

US$270.00

  • SKU: F7101
  • Size: 315cm
  • Weight: 0.8385g
  • UPC Code: 641378086243
3

Pole Series 2: Lower Unit

US$340.00

  • SKU: F7103
  • Size: 283cm
  • Weight: 1.0625g
  • UPC Code: 641378086250


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals
QRG – Using Pole Series 2 Upper and Lower Unit

Videos


Carbon Fiber Poles PLAYLIST

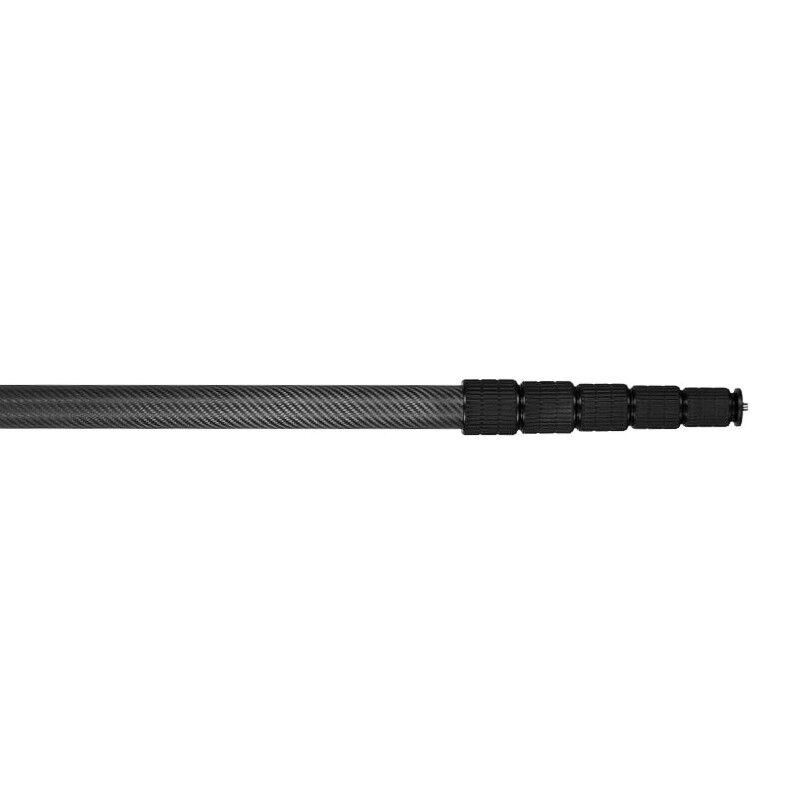

Pole Series 2 consists of two units - UPPER and LOWER.

The two camera extension pole units can be mounted to form a longer single unit pole (adapter included by default).

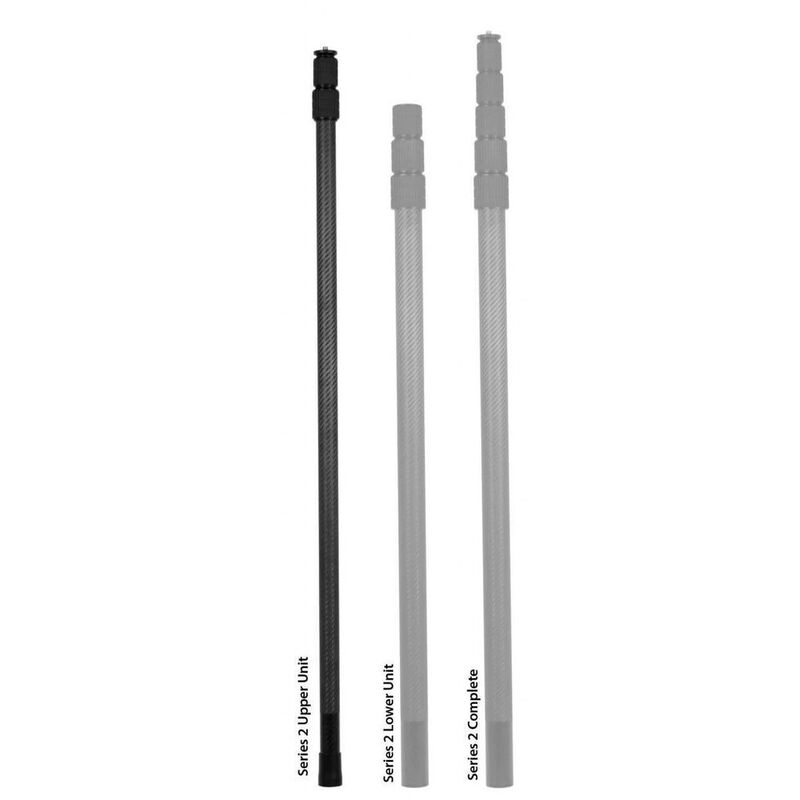

The upper units consist of 3 tubes with diameters of 24mm, 28mm, and 32mm (.94",1.1" and 1.26").

Closed length is 116cm (45.7").

Maximum extended height is 315cm (124" or 10ft 4").

The Lower unit consists of 3 tubes with diameters of 36mm, 39.75mm, 43.5mm (1.4", 1.56", 1.7").

Closed length is 107cm (42.13"). Maximum extended height is 283cm (111.42").

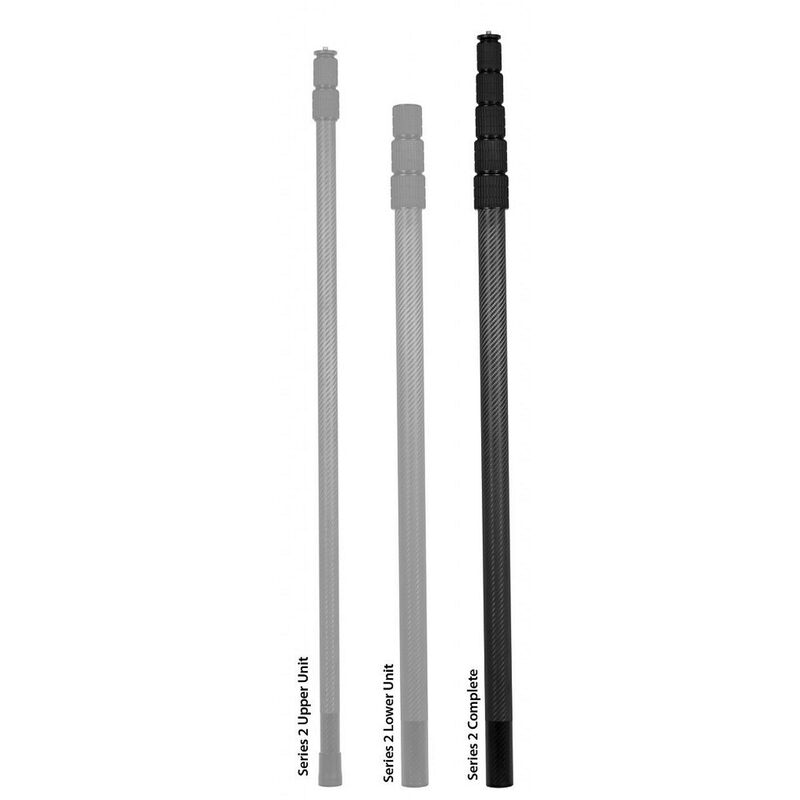

Combined specs:

Closed length is 119cm (46.85").

Maximum extended height is 592cm (233" or 19ft 5").

Maximum recommended loading is 2kg (4.4lbs) for all poles at full vertical extension.

IMPORTANT SAFETY NOTES:

* Fanotec Carbon Fiber Poles mounts conduct electricity very well. Please take extreme caution when raising and using these poles around electrical wires.
* Fanotec poles are NOT designed to be mounted onto a rigid tripod. The pole base can be damaged by the added torque generated with the use of camera and lens at full extension.

Fanotec poles have been tested extensively by the manufacturer and experts in Pole Panoramic Photography before releasing to market. A recommended load of 2kg is determined based on ease of handling and stability of the system in gentle winds or in low light situations. Larger loading can be used at reduced extension and/ or with help of guy wire system. A robotic head with camera and lens weighing 4.2kg has been tested on Pole 3 with guy wire system attached recently. The result has been very satisfactory.
Lab tests show even our smallest carbon fiber tube is capable of withstanding extreme vertical weight loads exceeding 100kgs. As a quality assurance measure, each pole is subjected to 50kg pulling tension for over 3 hours to test the integrity of joints and locking mechanism before leaving the factory. The maximum loading is more related to the stability of support base than to the ultimate strength of the pole. With a rigid support such as custom made car mount, the pole can handle far more than 5kg loads. A load exceeding 5kg should be tested properly before using the system in the crowd. Fanotec bears no responsibility for any injury or damage that may cause as a result of the failure of the pole and support system.

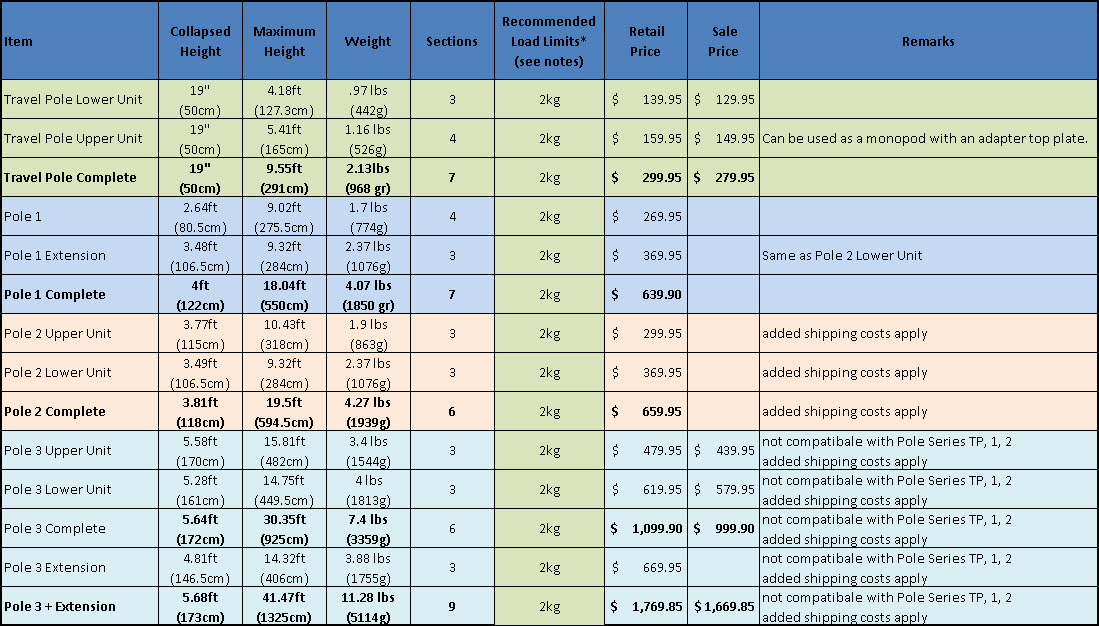

Pole comparisons

Pole comparisons

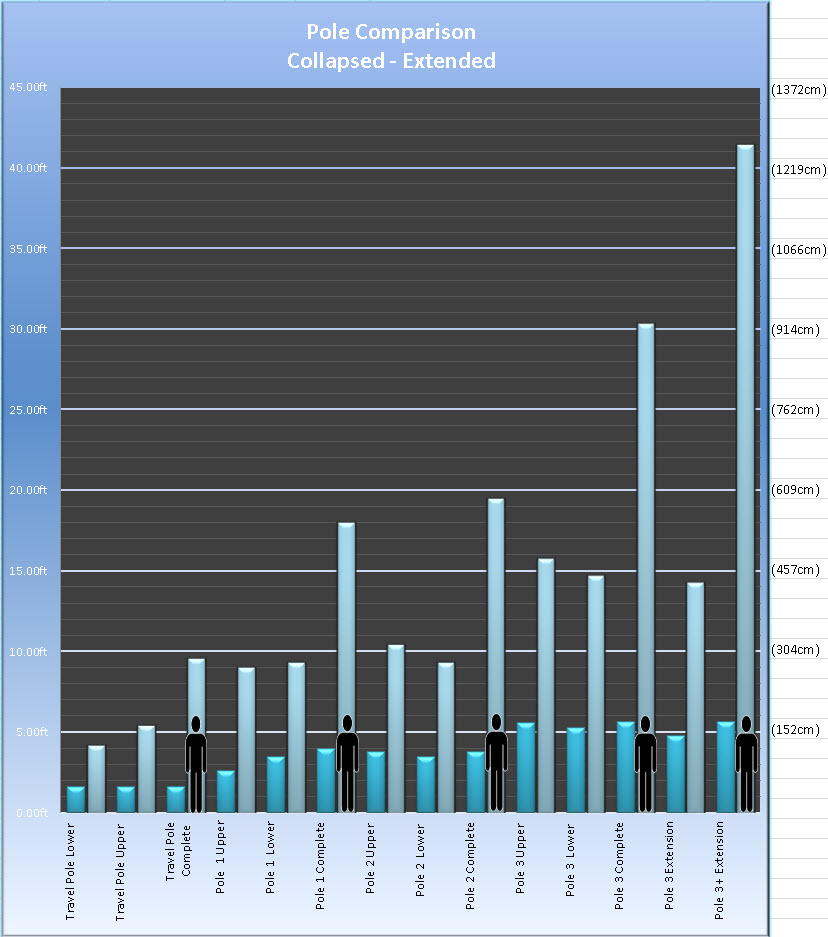

Pole chart

Pole chart

TWO YEAR WARRANTY APPLIES TO ALL POLES.
