Footplate for Pole and Rotator

Footplate for Pole and Rotator
Fullscreen button
Product Variants1

Footplate for Pole and Rotator


  • SKU: F7155
  • UPC Code: 641378086496

Product QR codeProduct QR code

Download Documents

All User Guides and Manuals

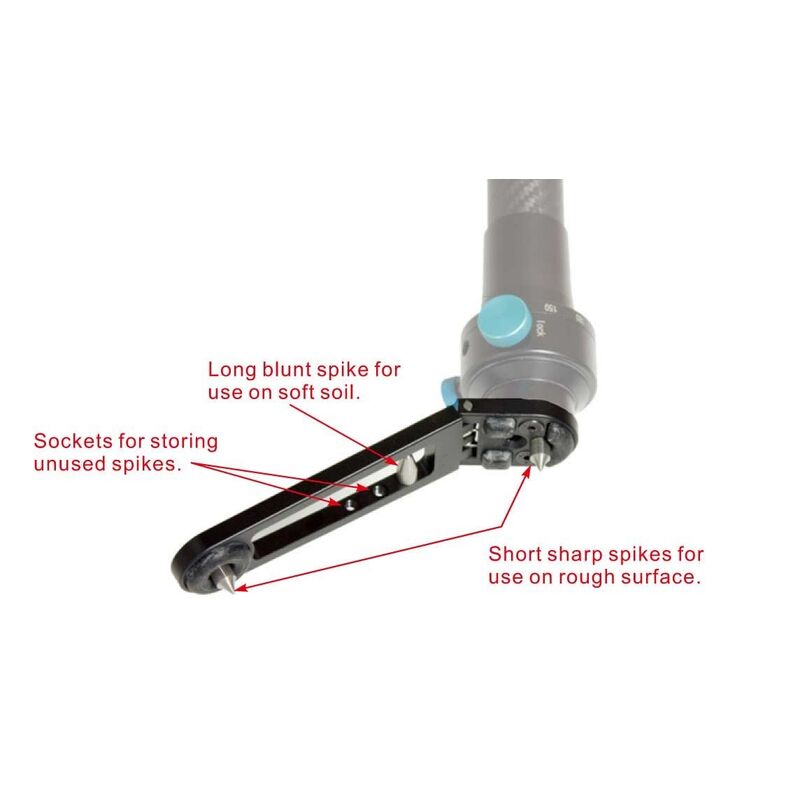

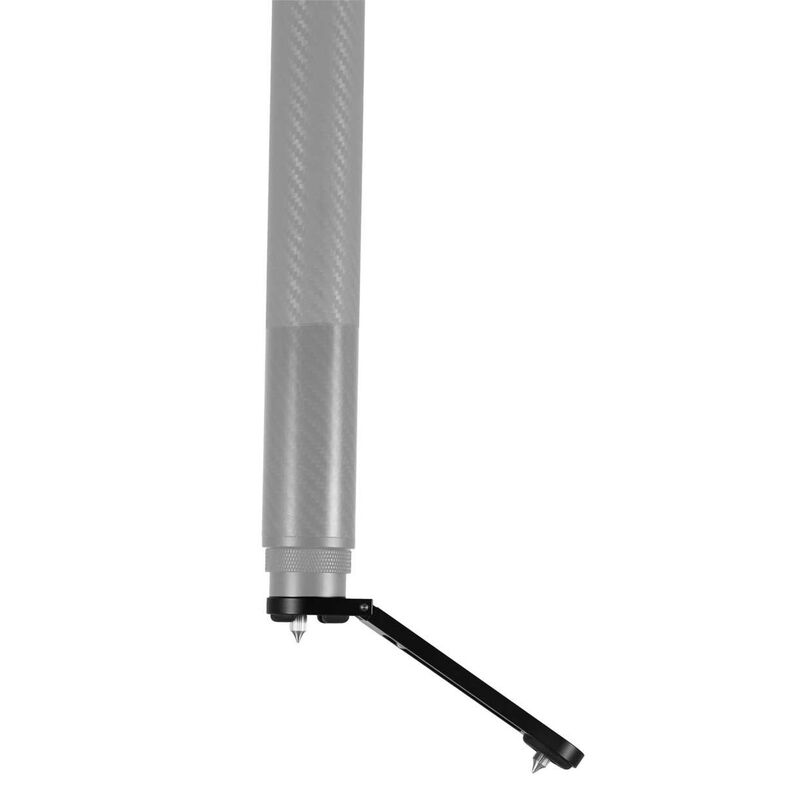

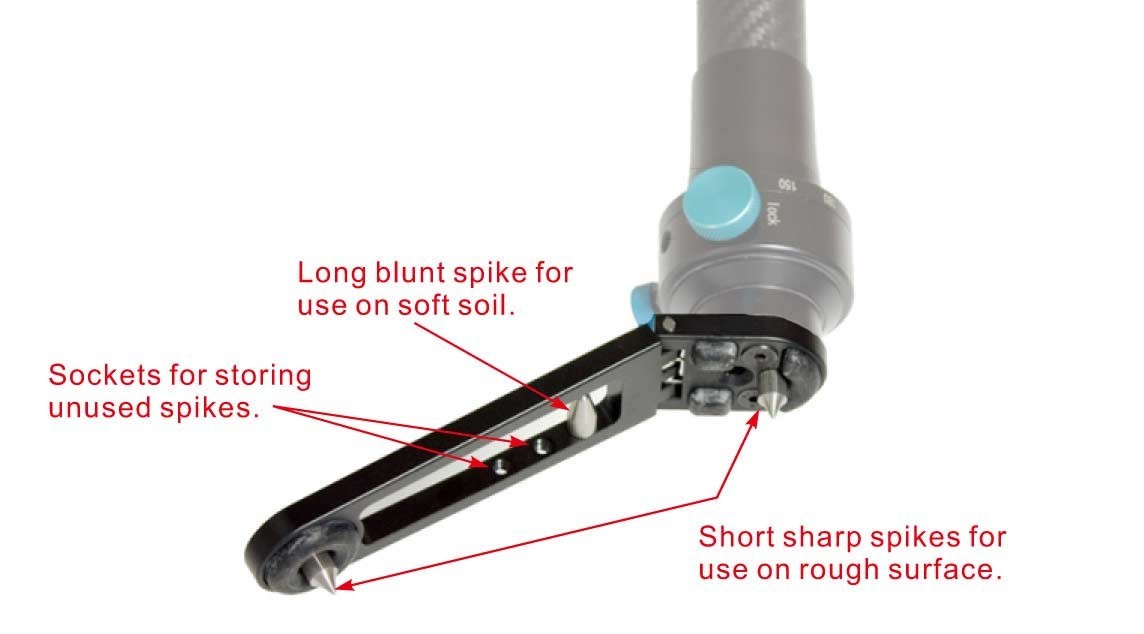

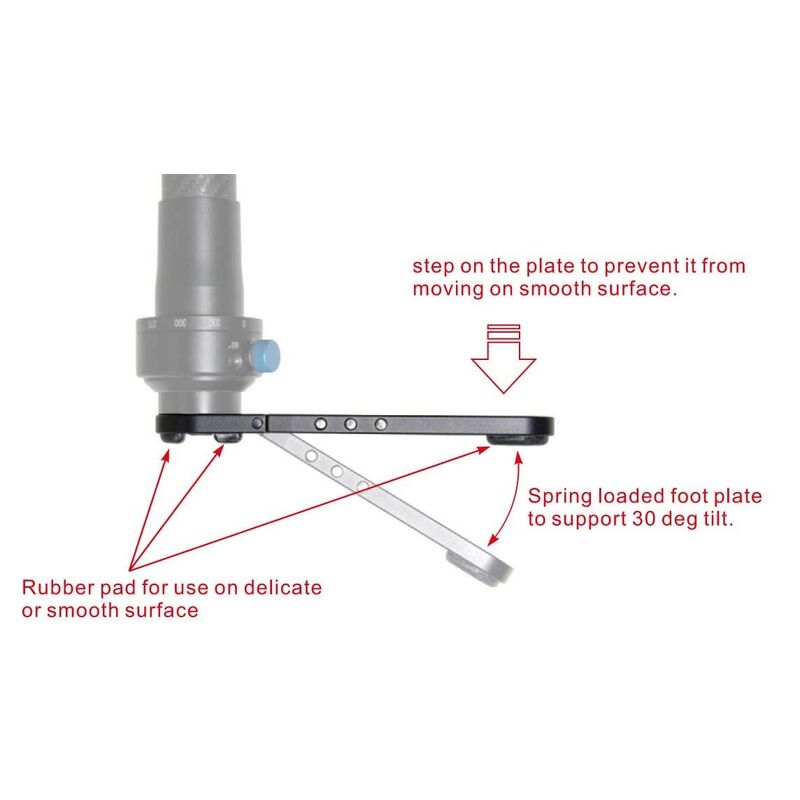

The foot plate adds an anchor to the Fanotec Rotator D4/5 and the new Pole Rotators when they are attached to the base of pole. It can also be installed on Fanotec's RD8/12/16 by means of an adapter which serves as a bumper to protect the rotators. It features a spring loaded tilting mechanism for use on uneven ground with a slope up to 30 degrees. When used with spikes it will grip any rough surfaces such as rocks or concrete surfaces and prevent the rotator from moving. Photographers will no longer need to guess the angle of rotation for each shot. Precise rotation intervals are possible by using a click-stop rotator. This will help expedite the pano taking process. The spikes are removable and can be stored on the plate when not in use. The base of the foot plate has rubber pads. This allows the foot plate to be used on smooth surfaces or places where spikes are prohibited. Photographers can simply step on the foot plate to prevent it from moving.

Acknowledgment: This foot plate is based on home-made version of Wim Koornneef, a talented photographer.
