Camera Plate II CP2

Camera Plate II CP2
Fullscreen button
Product Variants1
1


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals
QRG – Nodal Ninja Anti-Twisting Camera Mounting Plate
Plaque d'attache rapide anti-rotation Nodal Ninja

Description

Included with all NN3's & NN4's Standard Pkgs. The CP2 replaces the older CP1.

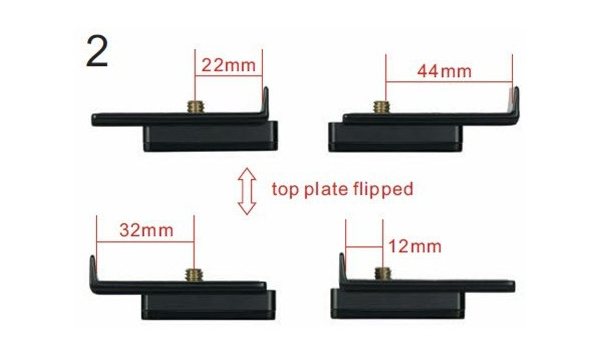

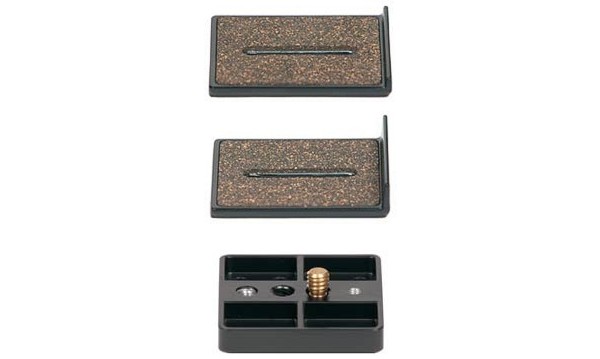

CP2 consists of 2 parts - plate and base. The base mount allows mounting to the Nodal Ninja and the plate allows for an anti-twist mounting to camera. We also include an extra plate with different mounting surface to allow user to select best plate for their camera.

Please see our Quick Reference Guide for this new Camera Plate.

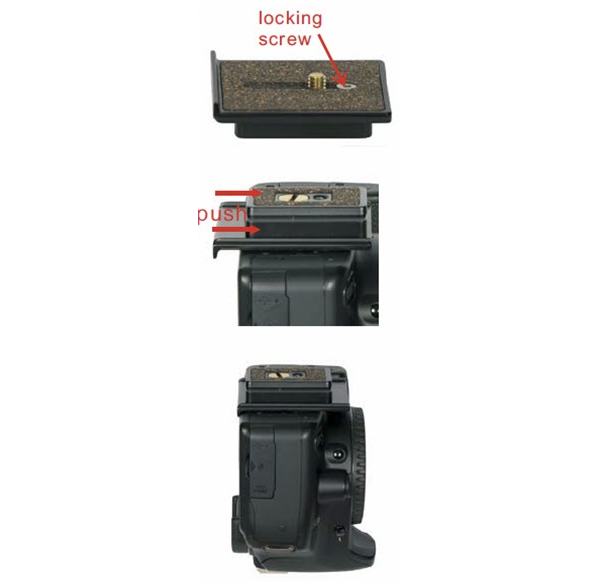

Camera Plate - 2nd Generation. Because of the back flange on it, it provides for a better anti-twisting mount on the base of the camera. We provide two plates. One plate has a little bit longer flange on it. So, dependind on the camera that you're using, you may want one plate or the other. To change the plates, you simply take the hex key, loosen up the hex screw, and after changing one plate with another, screw it back down, not too tight. Then mount the camera plate to the base of the camera using a Nodal Ninja coin, and again, not too tight, but just enough to allow you to slide the flange so it touch the back of the camera. You can take off the plate and tighten down the hex screw. Now, you can mount the plate directly to the base of the camera, and then simply mount the camera to the upper rail of the Nodal Ninja. This provides for a nice anti-twisting of the upper camera, a good secure mount to the upper rail of the Nodal Ninja.


Media Gallery
CP-2 Camera Mounting Plate 2nd Generation
