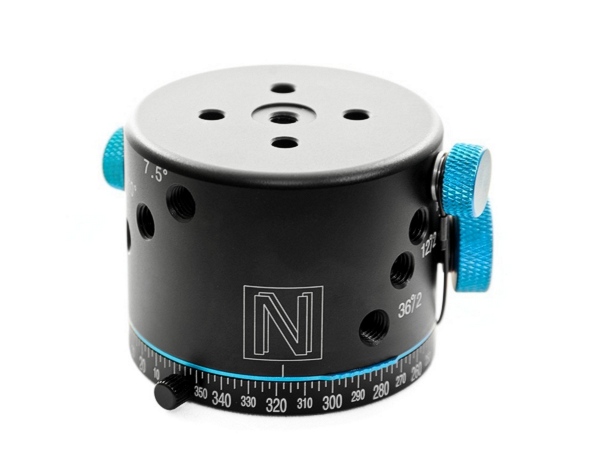

Advanced Rotator RD16-II

Advanced Rotator RD16-II
Fullscreen button

Compact and light weight
only 347 grams
More than 10 kg (22lbs)
loading supported
Fine 2.5 degree
rotation markings
Ideal for HDR panos
and/or mosaics
Great in
windy locations
Detent interval
can be changed on the fly

Product Variants2
1

Advanced Rotator RD16-II

  • SKU: F1161
  • UPC Code: 689466527995
2

Advanced Rotator RD16-II: Factory Irregular

  • SKU: F1161X
  • UPC Code: 641378089909

During production, there are occasional coating flaws/ minor scratches on some finishes. The manufacturer deems these items as Factory Irregular (FIR), places a stamp on the product. ALL FIR's carry the same warranty as regular products. They are functionally the same.



Description

Part in a series of Fanotec's new top of the line CNC machined advanced rotators. These rotators combine high precision, ease of use, compactness, light weight and durability. The inner ball bearing construction also provides for very fluid rotation. You can now change click stops on-the-fly. The RD16 has 16 different selectable click options.


Features

  • Made from imported premium quality aluminum alloy.
  • Precision CNC machined components.
  • Lubricated bearings for smooth rotation.
  • Laser engraved markings.
  • Detent interval (click stop) option can be changed in seconds on the fly.
  • More than 10 kg (22lbs) loading supported.
  • Knob for locking rotation.
  • Retainer wire so you don't lose the knobs.
  • Ideal for making HDR panos and/or mosaics.
  • Great in windy locations.
  • Small nadir footprint.
  • Small nadir footprint diameter of 62mm.
  • The unique placement of knobs means that they will never appear in the spherical panos.
  • Fine 2.5 degree rotation markings for making high resolution mosaics.
  • Compact and light weight - only 347 grams.
  • 16 different degree stop increments (with equivalent number of stops around) include:
    • 3.75 (96 stops)*
    • 5 (72 stops)*
    • 6 (60 stops)*
    • 7.5 (48 stops)
    • 10 (36 stops)
    • 12 (30 stops)
    • 15 (24 stops)
    • 18 (20 stops)*
    • 20 (18 stops)
    • 24 (15 stops)
    • 30 (12 stops)
    • 36 (10 stops)
    • 45 (8 stops)
    • 60 (6 stops)
    • 90 (4 stops)
    • 120 (3 stops)

* Requires dual detent plungers.


Package includes

  • RD16-II rotator
  • 2ea blue anodized knobs
  • 1ea blue anodized locking knob
  • Your choice of NN3/4/5 mounting kit

Specifications

  • Weight - 400gr (14 oz)
  • Height - 48mm (1 7/8") x Diameter: 62mm (2 3/8")
  • Maximum weight load: 11kg (22lbs)
  • Ideal working weight load: approx 5.5kgs (12lbs)
  • Metal: Anodized aluminum
  • Base Color = Non-glare black
  • Thread = base 3/8", top M6 Demarcations (reference tic marks) every 2.5 degrees
