NN6 Starter Pkg

NN6 Starter Pkg
Fullscreen button

Amateur - Pro
Comfortable Size, Strong
Uses: General, Landscape, Gigapixels
High Resolution, Commercial, HDR
CNC machined
panoramic head

Product Variants1

NN6 Starter Pkg


  • SKU: F6001
  • Size: Lower rail: 200mm, Upper and vertical rail: 190mm
  • Weight: 2.02lbs (920g)
  • UPC Code: 641378087806

Product QR codeProduct QR code

Download Documents

All User Guides and Manuals
NN6 Starter QRG
NN6 Operating Manual



Level: Amateur - Pro.

Lenses: 8-200mm+.

Cameras: DSLR's.

Features: Comfortable Size - Strong - Upper Rotator 7.5 degree positive stops or free rotation.

Uses: General, Landscape, High Resolution, Gigapixels, Commercial, HDR.

After researching and developing superior mechanical panoramic hardware for a decade, Fanotec is now pushing the envelope by incorporating robotic components to the design. A range of products developed from the ground up together with the robotic developments will replace some of the legacy products.

Nodal Ninja 6 (NN6) is the successor to Nodal Ninja 4 and Nodal Ninja 5, and is the first model that is compatible with the coming motorized rotator, capable of transforming into a 2-axis fully automatic pan/ tilt head with diverse functions.

It is also the first low cost ALL CNC machined panoramic head in the product line. We carefully examined the Ultimate line and listened to end user feedback to optimize these newer designs. By reducing the number of quick release components, overall cost is much reduced. The NN6's will have quality standards very similar to the Ultimate line incorporating hard anodized coating.

NN6 Features

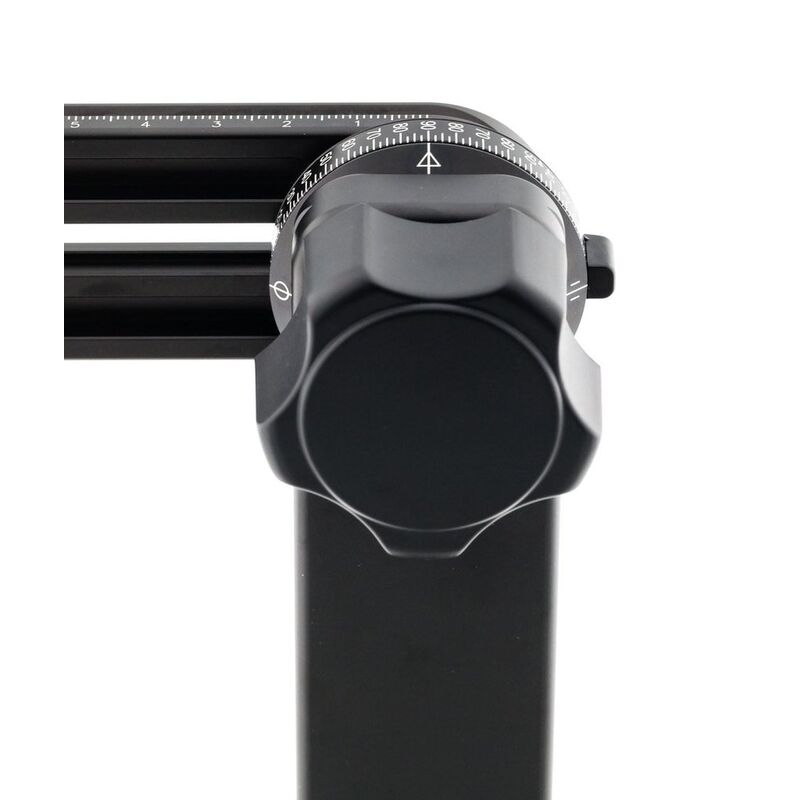

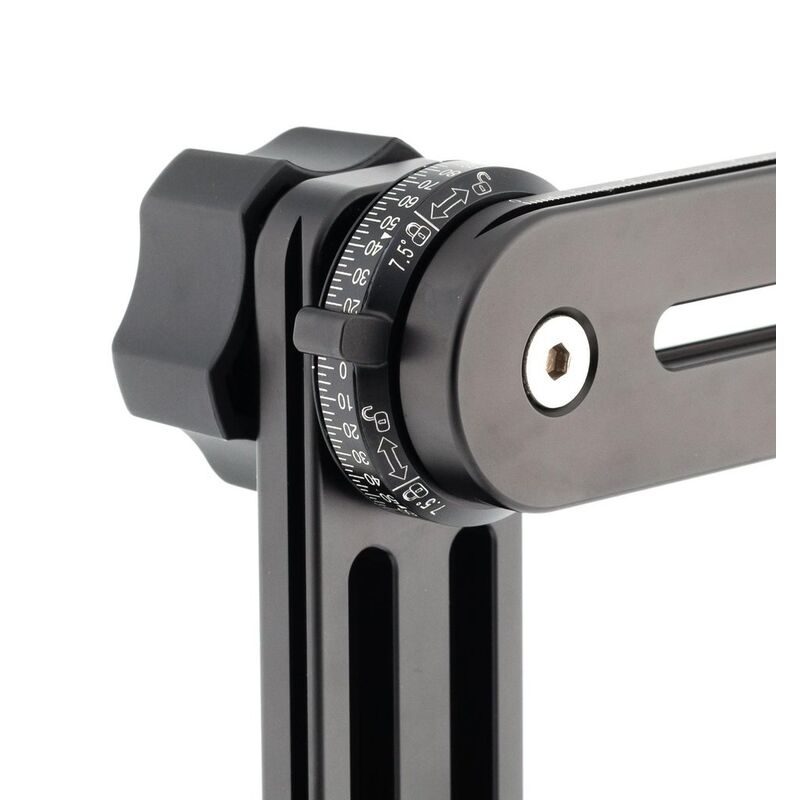

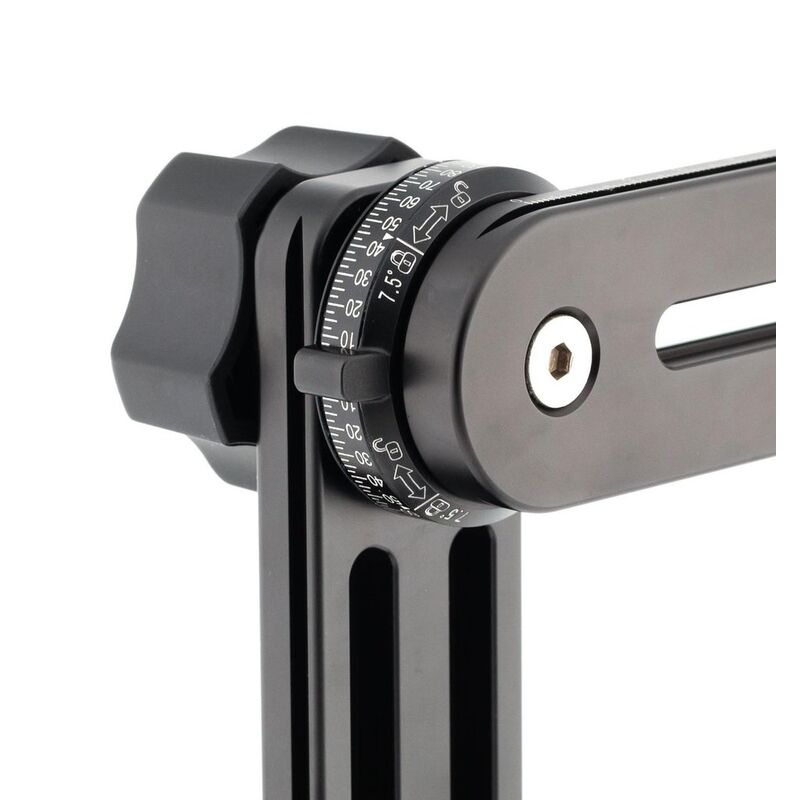

  • Compact upper rotator with precise 7.5 degrees detent lock (positive stops) which can be disabled on the fly by simple turning of a lever to allow free rotation and locking at arbitrary angle. A legendary design in NN5, now with double the number of locking positions doubling the maximum focal length.
  • Supporting up to 200mm equivalent focal length (camera in portrait orientation) with detent lock (higher focal lengths possible with free rotation).

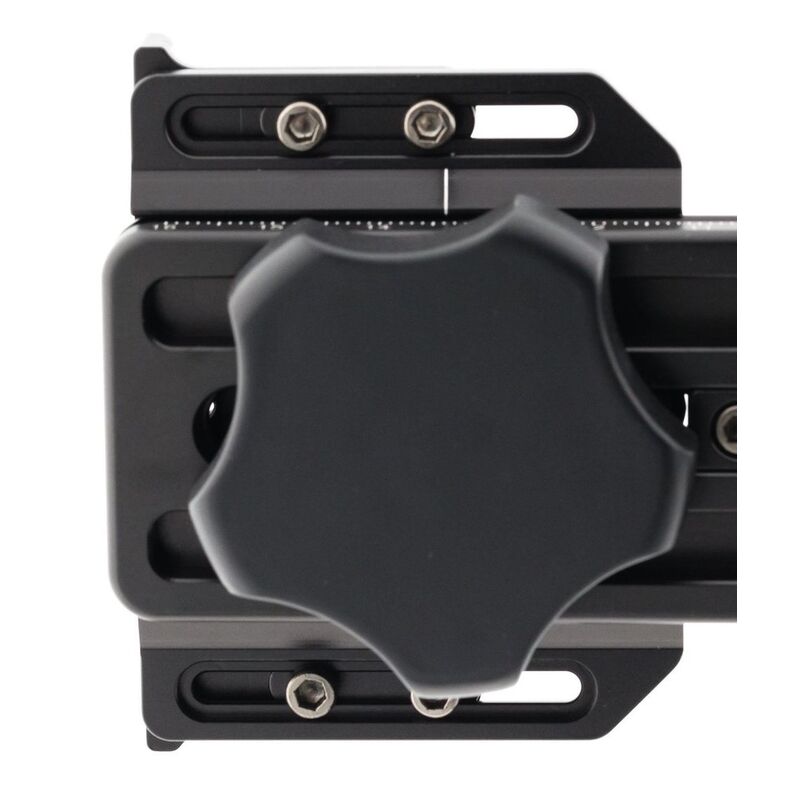

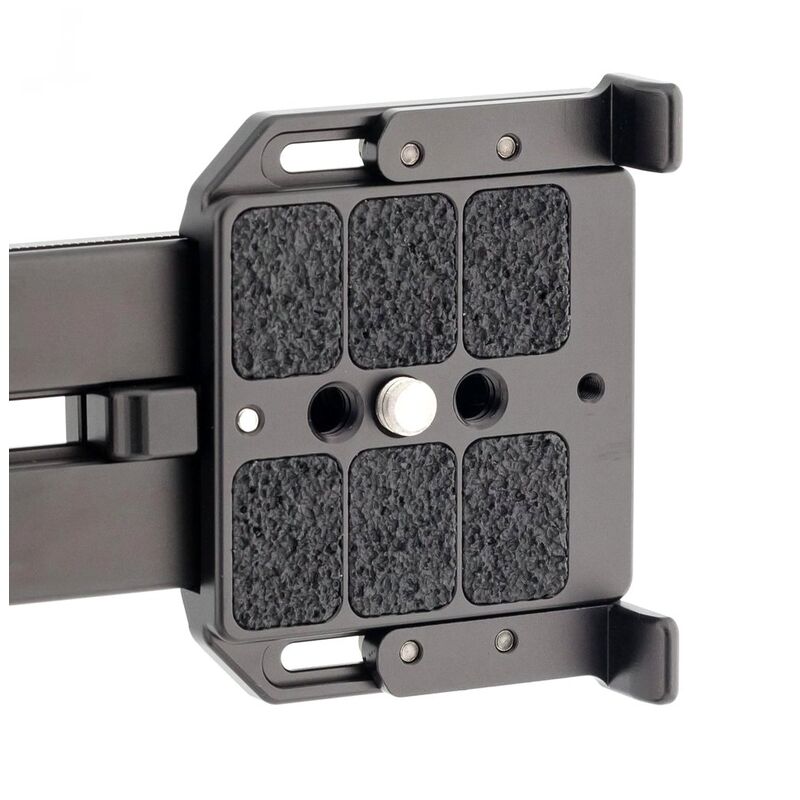

  • New anti-twisting camera mounting plate that mounts to the camera by using an easy to grip, glove friendly knob. No tools needed.
  • Arca Swiss compatible rails allow use of QR clamps and other compatible accessories.
  • Supports most DSLRs with or without battery grip.

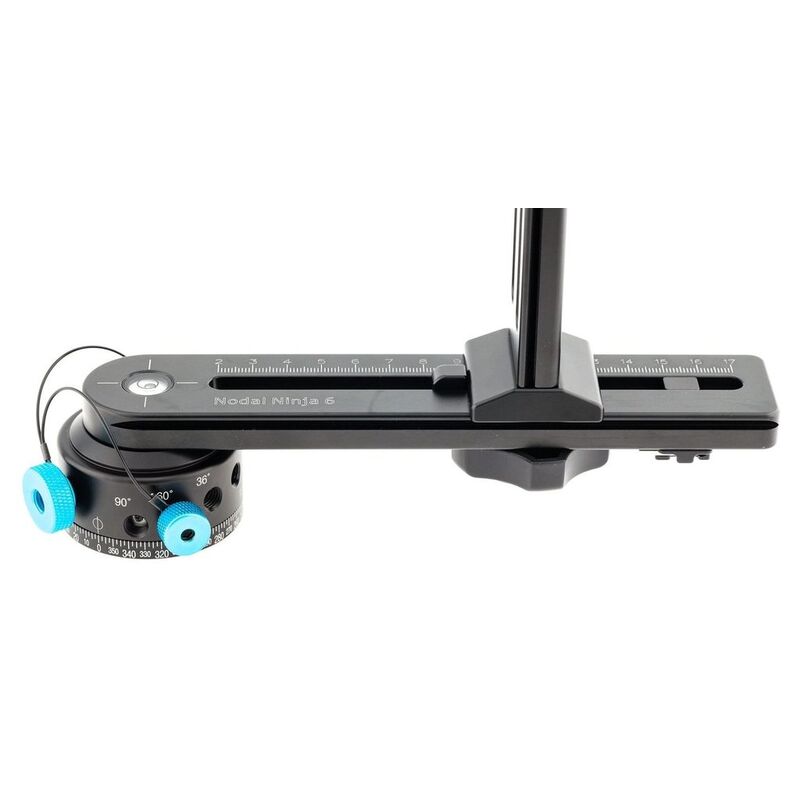

  • Come standard with custom made Advanced Rotator D10 (RD10) as default. Compact, lightweight with 10 detent options ranging from 90 to 5 degrees which are easily changed on the fly.
  • Compatible with other advanced rotators.
  • Optional Quick Release Nadir Adapter that combines the function of quick release and nadir adapter, for rapid mounting / dismounting the vertical assembly and effortlessly taking clean nadir shot (down shot).

Advanced Rotator D10 Features

Many people have requested a rotator that has the size of advanced Rotator D5 but with more detent options. Advanced Rotator D10 is the answer. It achieves the best balance of size and versatility.

  • Compact, lightweight with 10 detent options ranging from 90 to 5 degrees that can be changed on the fly.
  • Suitable for fisheye, wide angle and telephoto lenses up to 200mm equivalent focal length.
  • 10 different degree stop increments (with equivalent number of stops around) include:
    • 5 (72 stops)*
    • 7.5 (48 stops)*
    • 10 (36 stops)
    • 15 (24 stops)
    • 18 (20 stops)*
    • 30 (12 stops)*
    • 36 (10 stops)
    • 45 (8 stops)*
    • 60 (6 stops)
    • 90 (4 stops)

*Requires dual detent plungers.

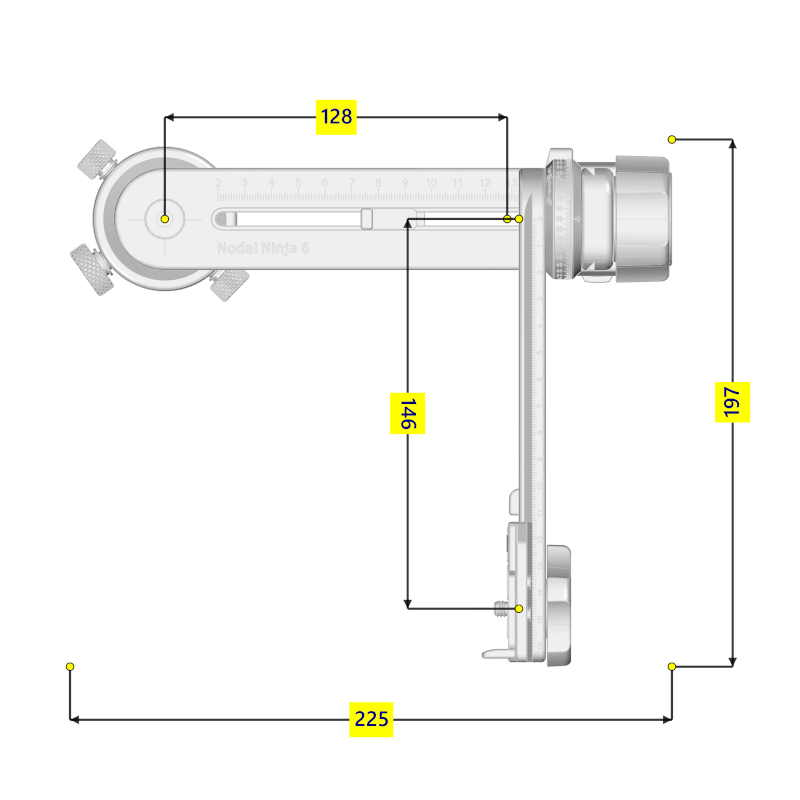

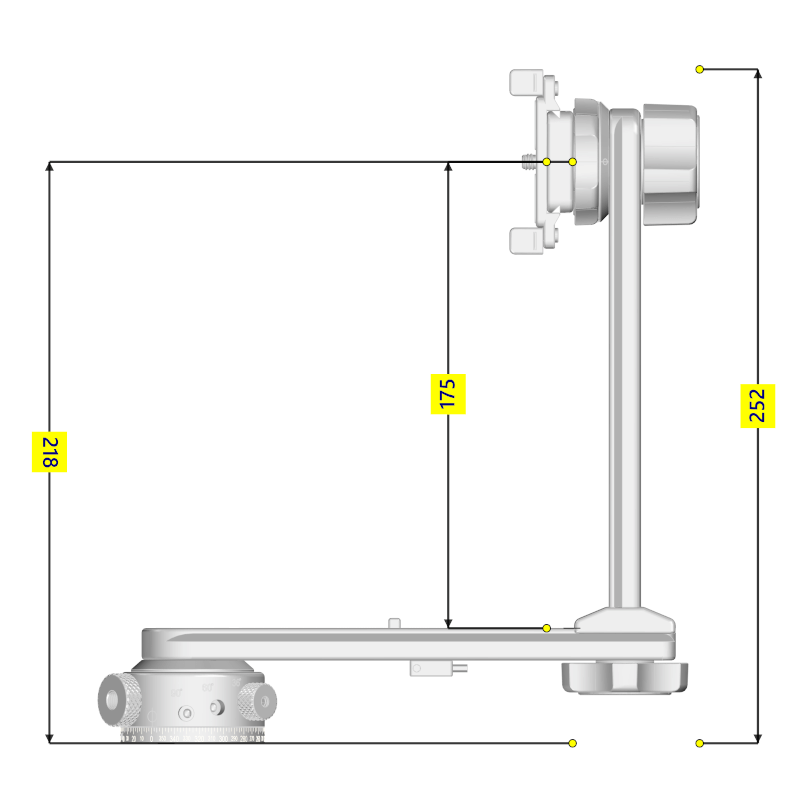

NN6 Specs

Weight: 2.02lbs (920g)

Lower rail: 200mm

Upper and vertical rail: 190mm

Note: Unfortunately there is no quick reference guide as of yet for the NN6 but very soon. The NN6 is built from the ground up with robotic add-ons in sight. It's a very intuitive design and works without issue for most. This product has been well tested in the field which is bringing in positive reviews by early users. However as with any new product we cannot test against all possible cameras and equipment configurations. As early feedback comes we are making little tweaks here and there to better the performance. If you see any need for improvements we would love to hear from you.

Nikon AF-S 24-70mm f/2.8G is not compatibility.

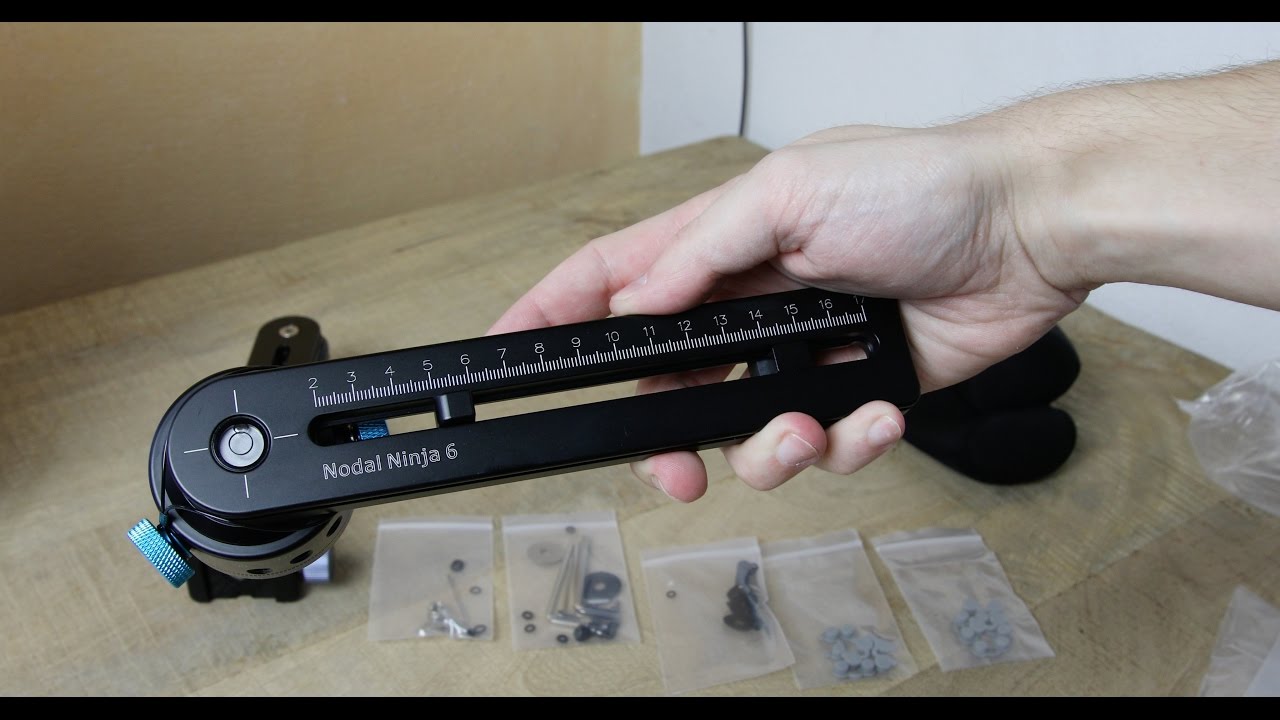

Customer YouTube Video - unboxing the NN6 w/Nadir Adapter

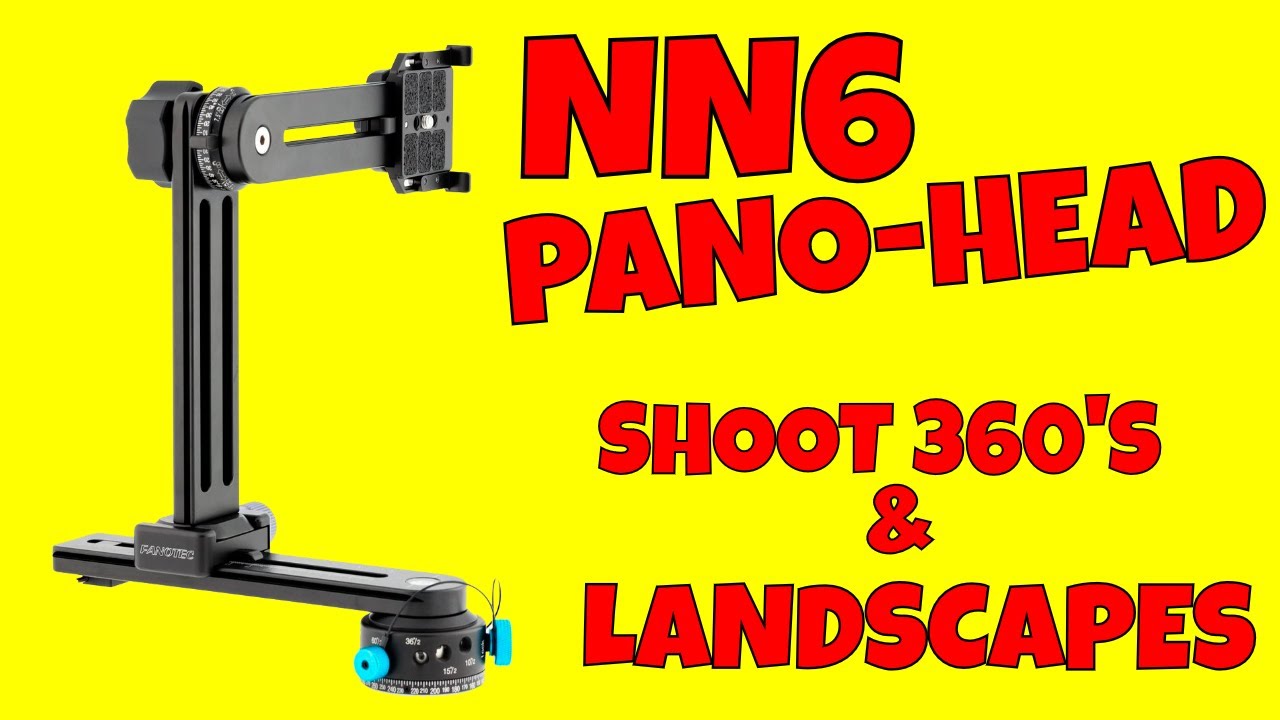

Panoramic Tripod Head Setup for Shooting 360 Panoramas and Landscapes

NN6 Starter Package Quick Installation

How to Shoot a Full 360x180 Full Spherical Panorama with the NN6 Panoramic Tripod Head

Log in to write a Testimonial, or send us your Testimonial via the contact form

View all

1 Question

1 ANSWER How can I detatch the leveler from the rail so I can get to the screw and tighten the screw?

Asked by Sebastian on 2022-07-01

Use a suction cup, the bubble is magnetically attached.

Answered by Staff on 2022-07-02
