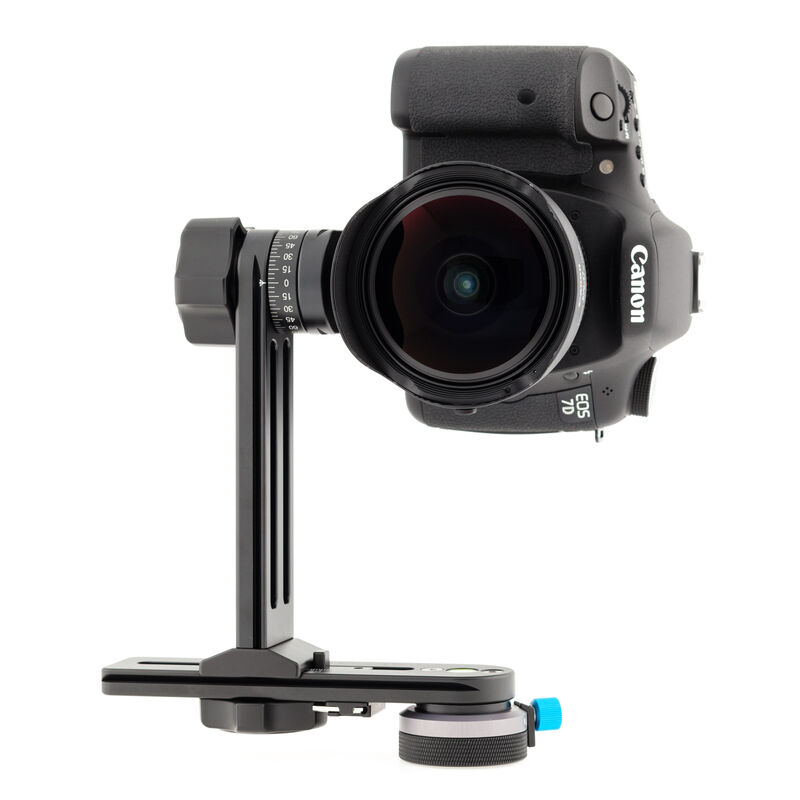

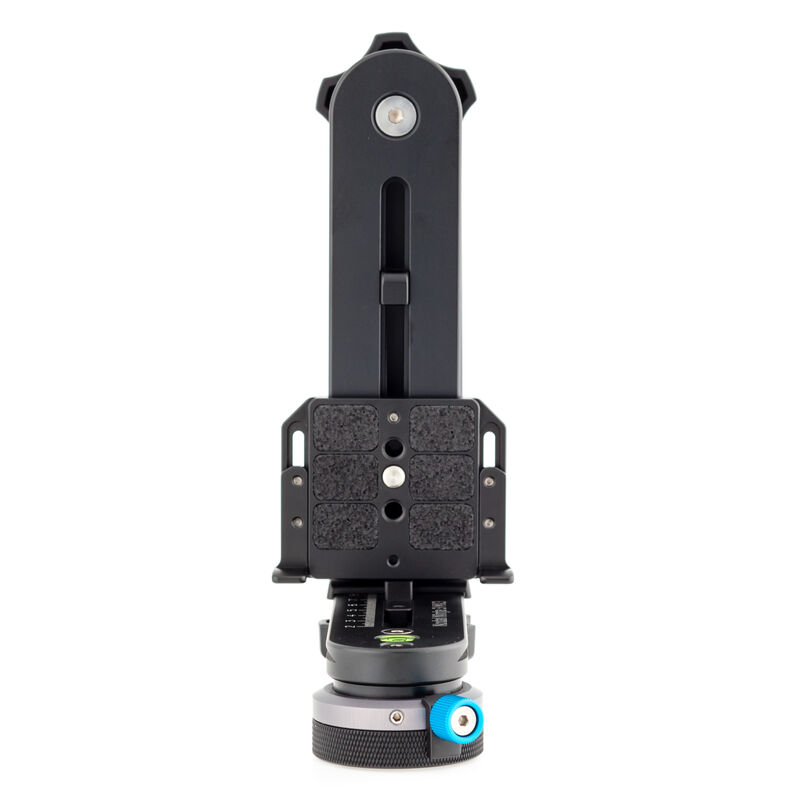

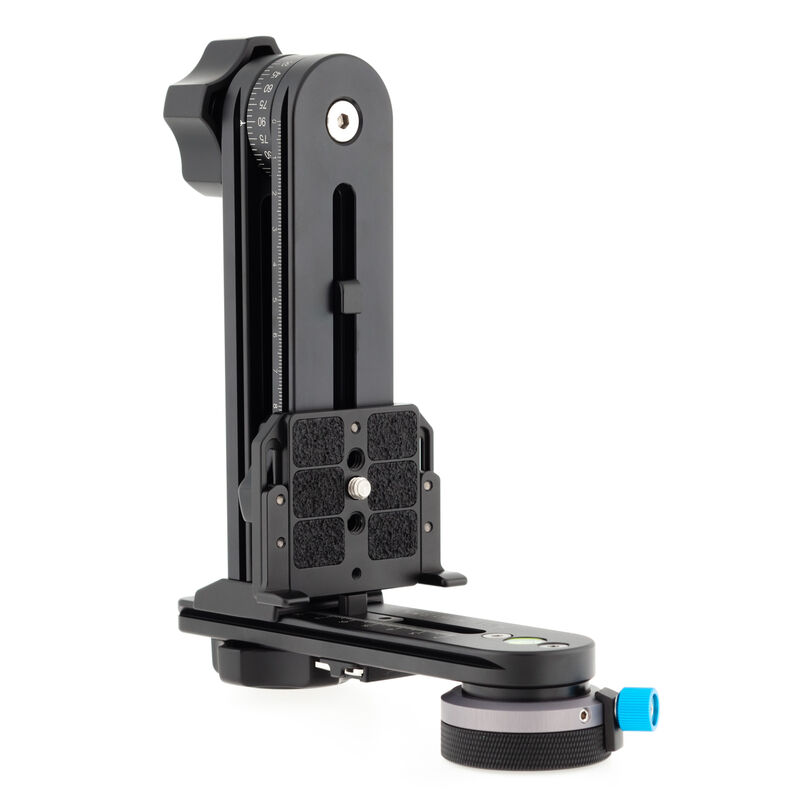

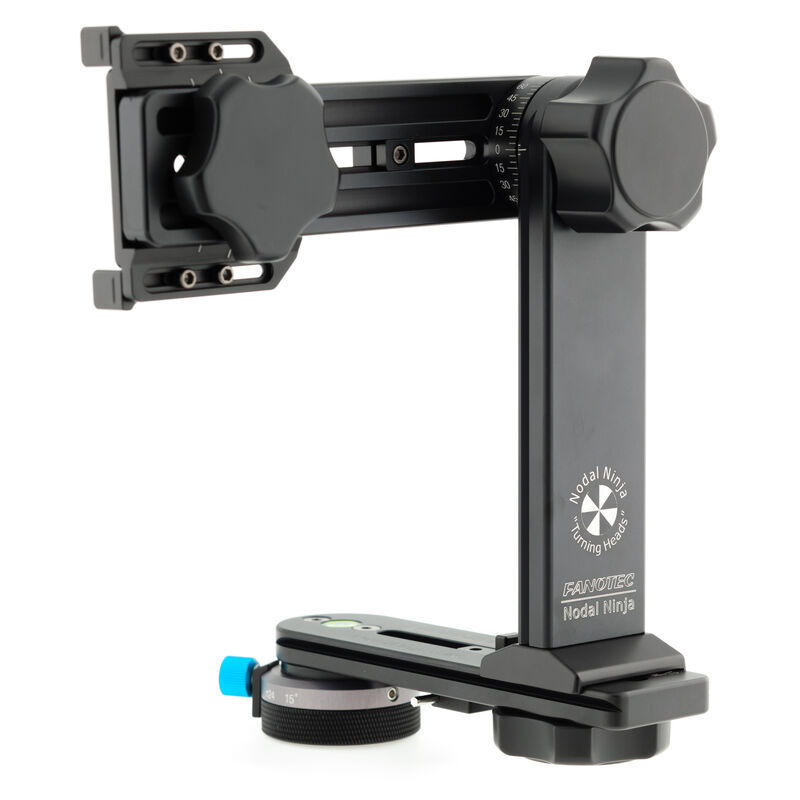

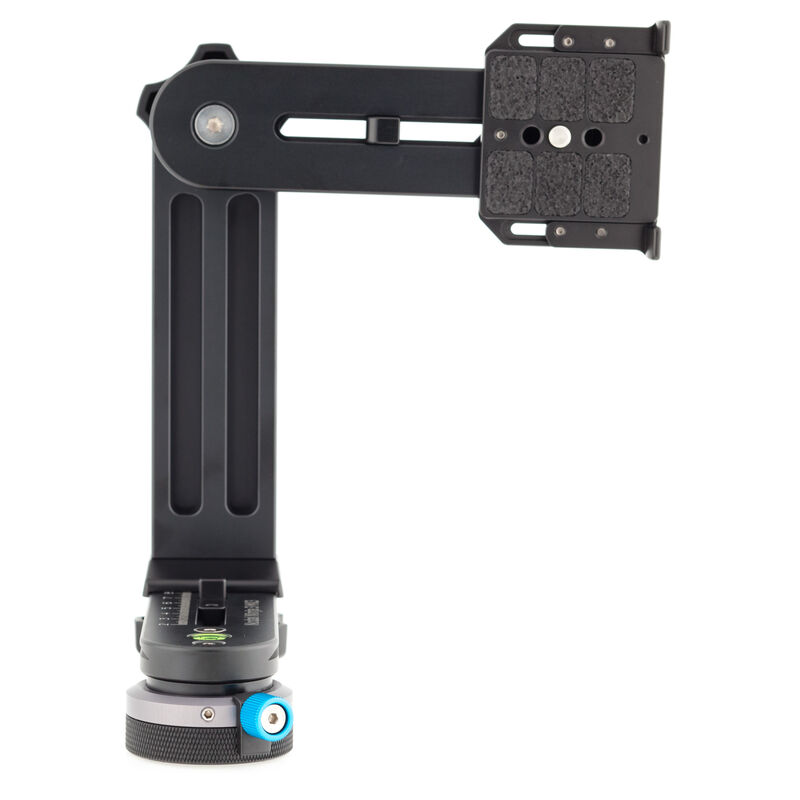

NN3 MK3 w/Rotator Mini Pkg

NN3 MK3 w/Rotator Mini Pkg
Fullscreen button
Product Variants1

NN3 MK3 w/Rotator Mini Pkg


  • SKU: F3300-1
  • Weight: 1.37lb (623g)
  • UPC Code: 641378089671

Product QR codeProduct QR code

Download Documents

All User Guides and Manuals
NN3 MK3 Operating Manual



This NN3 MK3 w/Rotator Mini Starter Package comes with RM4 (90° 4 stops) installed. Additional detent ring(60° 6 stops) is icluded as spare.

Note: Nikon AF-S 24-70mm f/2.8G is not compatibility with the NN3 MK3 or NN6 - only the M Series.

Introducing the NEW CNC Arca-swiss NN3 MK3.

The NN3 has evolved over its 12 year culmination of production from the NN1 in 2005 to the NN3 MK3 in 2017.
The latest generation "MK3" is created using state of the art computer-controlled cutting (CNC) machines resulting is greater precision, uniformity and cross compatibility. Small, sleek, and sexy. The NN3 MK3 is lightweight and compact. Arca-Swiss compatible and like the MKII suitable for compact cameras, Micro Four Thirds mirrorless cameras, and even smaller DSLR's with lens up to 50mm. Very similar in design function to it's big brother the NN6.

NN3 MK3 utilizes Rotator Mini or Rotator D10 as the lower rotator, which are used in other Nodal Ninja panoramic heads. It also shares many parts and accessories with NN6, making the whole system much more versatile and cost effective when shifting or upgrading to other models. Like NN6, the MK3 is compatible with the automated rotators (MECHA), capable of transforming into a 2-axis fully automatic pan/ tilt head with diverse functions.

Special surface treatment in upper rotator to increase the friction for much larger loading than NN3 MKII.

Maximum load: 3.3lb (1.5kg) with Rotator Mini and 7.7lb (3.5kg) with Rotator D10.

For additional rings - click here.

Available detent ring options:

  • RM3 - 120° stops
  • RM4 - 90° stops
  • RM5 - 72° stops
  • RM6 - 60° stops
  • RM8 - 45° stops
  • RM10 - 36° stops
  • RM12 - 30° stops
  • RM14 - 25.7° stops
  • RM20 - 18° stops
  • RM24 - 15° stops
  • RM30 - 12° stops
  • RM36 - 10° stops

Available with Nadir Adapter.

Note: The Nadir Adapter is NOT a standalone accessory in NN3 MK3 or NN6 - this is an integrated part. It replaces vertical rail base plate and knob in the Starter Package. It is not an add-on.

Nodal Ninja 3 MK3 with Rotator Mini V2 Package Installation Video

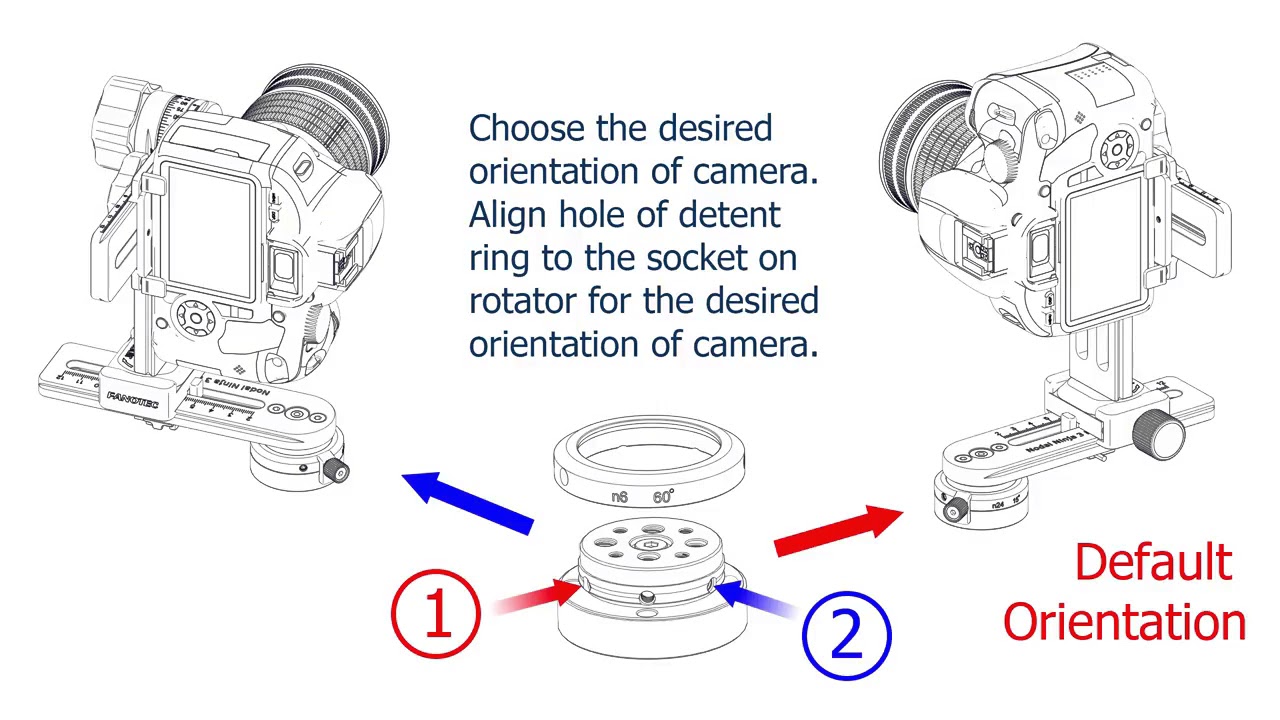

Changing Detent Ring for Rotator Mini V2 on Nodal Ninja 3 MK3

Log in to write a Testimonial, or send us your Testimonial via the contact form

View all

1 Question

1 ANSWER Would I need an L Bracket tool to prevent the camera from leaning?

Asked by Sherif on 2022-05-01

No added accessories are needed. You mount NN directly to the top of a tripod. The camera will securely mount and will not lean once tightened.

Answered by Staff on 2022-05-02
