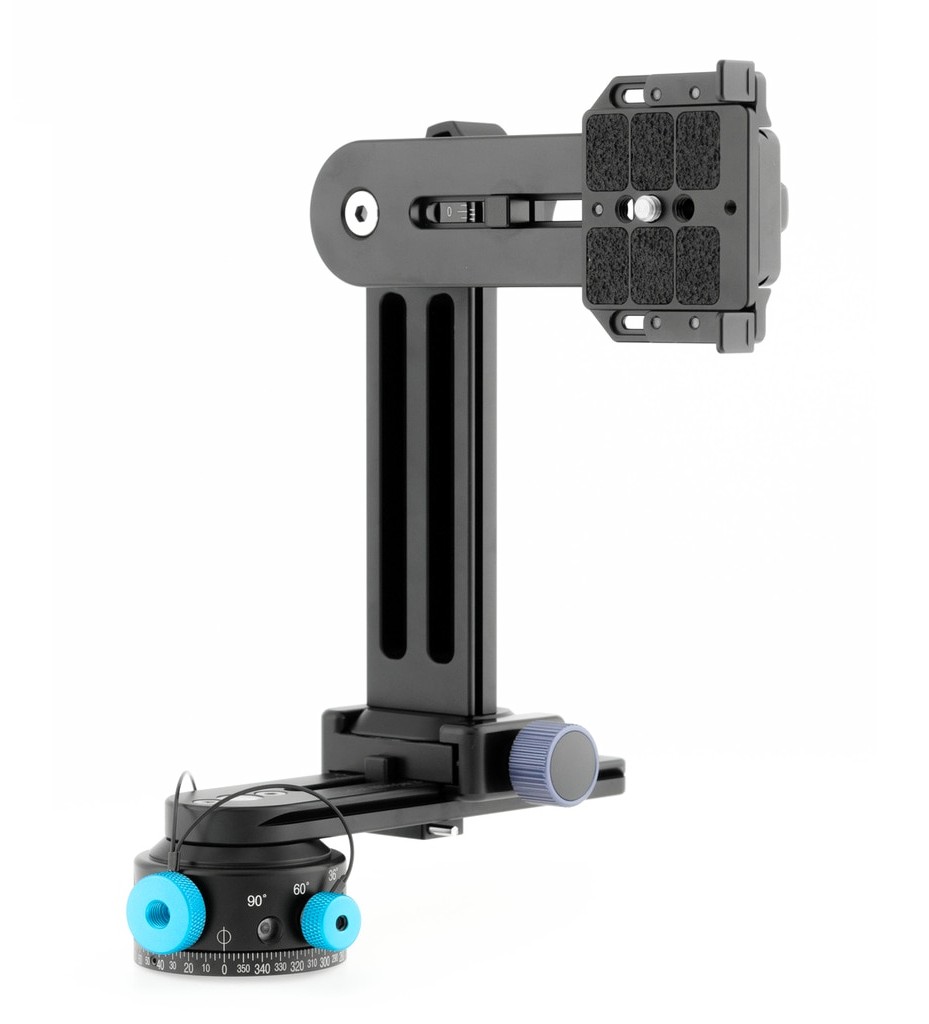

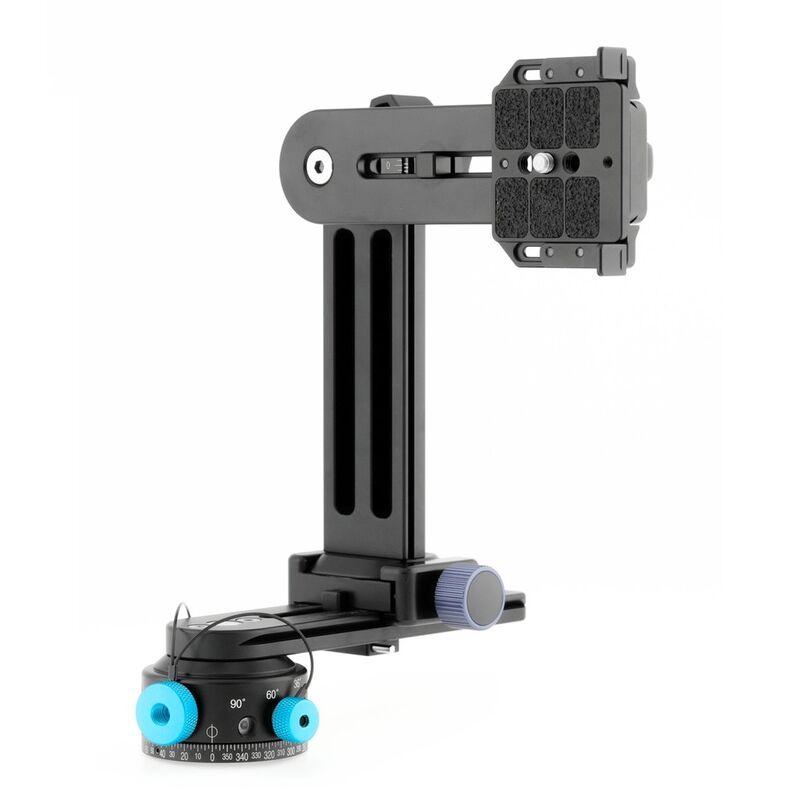

NN3 MK3 + Nadir Adapter w/ Lower Rotator D10 Pkg

NN3 MK3 + Nadir Adapter w/ Lower Rotator D10 Pkg
Fullscreen button
Product Variants1
1

NN3 MK3 + Nadir Adapter w/ Lower Rotator D10 Pkg

US$320.00

20OFF at checkout
  • SKU: F3321
  • Weight: 0.798g
  • UPC Code: 641378087790


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals
NN3 MK3 Operating Manual

Videos


NN3 MK3 Series PLAYLIST




The NN3 has evolved over its 12 year culmination of production from the NN1 in 2005 to the NN3 MK3 in 2017.

The latest generation "MK3" is created using state of the art computer-controlled cutting (CNC) machines resulting is greater precision, uniformity and cross compatibility. Small, sleek, and sexy. The NN3 MK3 is lightweight and compact. Arca-Swiss compatible and like the MKII suitable for compact cameras, Micro Four Thirds mirrorless cameras, and even smaller DSLR's with lens up to 50mm. Very similar in design function to it's big brother the NN6.


NN3 MK3 utilizes Rotator Mini or Rotator D10 as the lower rotator, which are used in other Nodal Ninja panoramic heads. It also shares many parts and accessories with NN6, making the whole system much more versatile and cost effective when shifting or upgrading to other models. Like NN6, the MK3 is compatible with the automated rotators (Mecha), capable of transforming into a 2-axis fully automatic pan/ tilt head with diverse functions.


Special surface treatment in upper rotator to increase the friction for much larger loading than NN3 MKII.


Maximum load: 3.3lb (1.5kg) with Rotator Mini and 7.7lb (3.5kg) with Rotator D10.


Rotator D10 Features:

Many people have requested a rotator that has the size of advanced Rotator D5 but with more detent options. Advanced Rotator D10 is the answer. It achieves the best balance of size and versatility.


  • Compact, lightweight with 10 detent options ranging from 90 to 5 degrees that can be changed on the fly.
  • Suitable for fisheye, wide angle and telephoto lenses up to 200mm equivalent focal length.
  • 10 different degree stop increments (with equivalent number of stops around) include:
    • 5 (72 stops)*
    • 7.5 (48 stops)*
    • 10 (36 stops)
    • 15 (24 stops)
    • 18 (20 stops)*
    • 30 (12 stops)*
    • 36 (10 stops)
    • 45 (8 stops)*
    • 60 (6 stops)
    • 90 (4 stops)

*Requires dual detent plungers.

It is recommended dealers only purchase:

F3305 - NN3 MK3 No Rotator

F3307 - NN3 MK3 with Nadir Adapter No Rotator

F1140 - Advanced Rotator RD10

F1235 - Rotator Mini V2


This allows dealers to build different packages based on consumer needs.


Note: The Nadir Adapter is NOT a standalone accessory in NN3 MK3 or NN6 - this is an integrated part. It replaces vertical rail base plate and knob in the Starter Package. It is not an add-on. Customers cannot upgrade from NN3 MK3 to NN3 MK3 w/NA as with earlier versions.

Panoramic Tripod Head Setup for Shooting 360 Panoramas and Landscapes


How to Shoot a 360 Panorama Nadir (down Shot) Using NN6 Panorama Head Nadir Adapter
