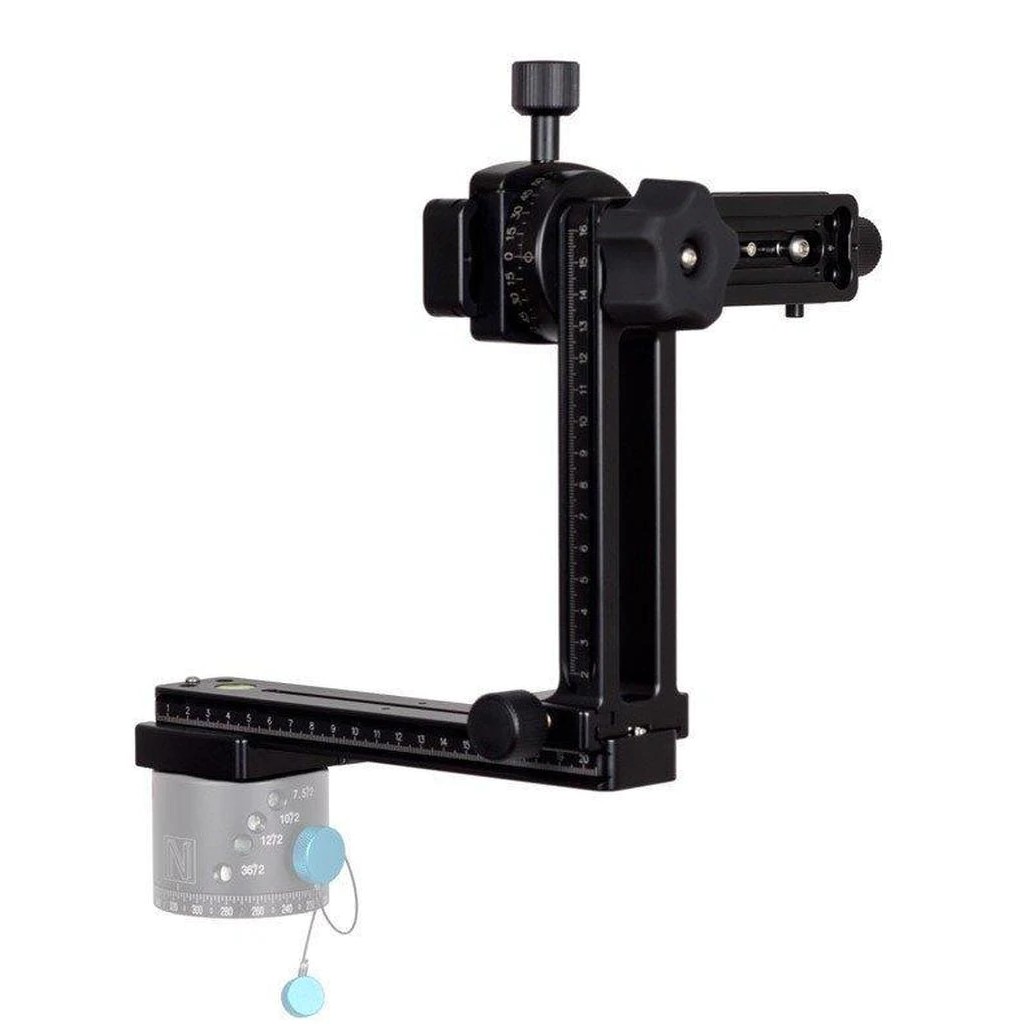

M1-L No Rotator

M1-L No Rotator
Fullscreen button

Modular design
Easy upgrade
Semi pro - Pro
Arca Style Modular Design,
Strongest, Repeatable Results
Super High Resolution,
Gigapixels, Commercial, HDR

Product Variants1


M1-L No Rotator


  • SKU: F8100
  • UPC Code: 641378086922

Out of Stock.

Product QR codeProduct QR code

Download Documents

All User Guides and Manuals
QRG – M1-L/S Ultimate Series
QRG – M1 Nadir Adapter
(French) Français: Remplacement de la molette supérieure de la rotule Nodal Ninja Ultimate M1

Level: Semi pro - Pro.

Lenses: 8- 200mm.

Features: Arca Style Modular Design, Strongest, Repeatable Results, Upgrade paths.

Uses: Landscape, Super High Resolution, Gigapixels, Commercial, HDR.

Precision CNC machined from premium T6061 aluminum and anodized, it has high precision, accuracy, durability and long lifetime all in one. The first model of this modular system is the M1 which has 7.5 degree precise positive stops at the upper rotator, supporting lenses from ultra wide angles to 200mm telephotos. It allows templates to be used to speed up stitching and reduce stitching errors.


  • QRC-55 (Lower Rotator Quick Release Clamp)* Jaw length: 55mm (F8303)
  • MFR-210 Double Dovetail (Lower Rail) Length: 210mm (F8150)
  • MFVR-170C Double Dovetail Vertical Rail with Integral QR Clamp (Vertical Rail) (F8152)
    This upper rail may be swapped for 210mm rail for added $10.
  • M1 Upper Rotator with 7.5 deg Stops to support:
  • QRC-55 (Upper Rotator Quick Release Clamp) * Jaw length: 55mm (F8303)
  • MFR-170 Double Dovetail (Upper Rail) Length: 170mm (F8151)
  • QRC-40A (Upper Rail End Clamp) Jaw length: 40mm (F2100)
  • Case (F8117)


  • RD8-II (F1180)
    (30, 15, 6, 5, 4, 3, 2.5, 2) to support:
  • RD16-II (F1161)
    (120, 90, 60, 45, 36, 30, 24, 20, 18, 15, 12, 10, 7.5, 6, 5, 3.75) to support:
  • Lens Ring Mount for Supporting Fisheye Lenses directly to upper rotator clamp
  • M1 Nadir Adapter (F8301)
  • M1L M2 Series Vertical Extender (F8310)
  • Stop Plate Arca-Swiss Style 2ea (F2106)
  • Camera Plate - This listing does not include a camera mounting plate.

Notes: *QRC-65 can also be used. QRC-55 is recommended for smaller footprint.
Customer can buy our dedicated camera plates or use "any" Arca-Swiss compatible camera plate.
