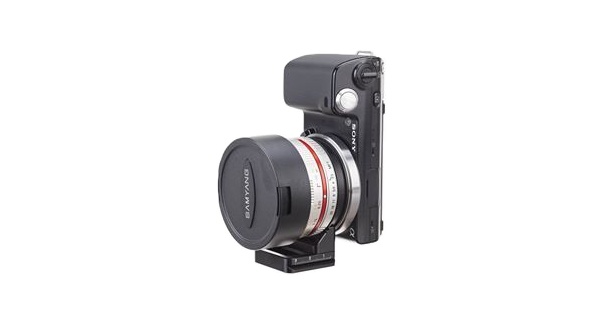

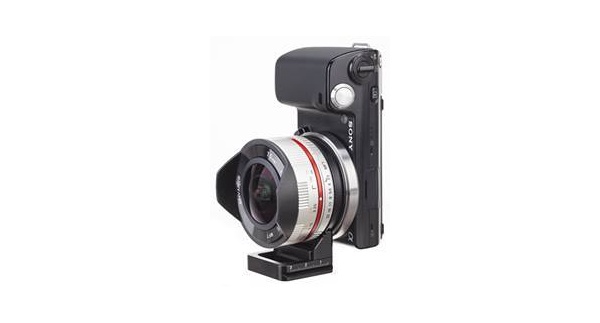

Conversion tool kit for Samyang 7.5mm Lens with Sony E-Mount

Conversion tool kit for Samyang 7.5mm Lens with Sony E-Mount
Fullscreen button
Product Variants1
1
Conversion tool kit for Samyang 7.5mm Lens with Sony E-Mount

Conversion tool kit for Samyang 7.5mm Lens with Sony E-Mount

US$74.95
Price: $124.95Save $50.00

  • SKU: F6228
  • Weight: 0.079g
  • UPC Code: 641378085529


Product QR codeProduct QR code

Download Documents


All User Guides and Manuals

Note that this conversion kit is not compatible with DSLR styled Sony E-mount cameras such as A3000 / A3500. The protruded flash and viewfinder housing interferes with the fixed lens plate and prevents the lens from mounting on the camera.


Samyang 7.5mm F3.5 fisheye is a sharp full frame (180-degree diagonal angle of view) fisheye, originally made for Micro Four Thirds (M43) system. It requires 5–6 shots around plus top and bottom shots to complete a spherical panorama. It is found that when adapted to a camera with APS-C (larger) sensor, it will give a 180 degree coverage along the width of image sensor with high sensor area utilization and high image quality. Only 4 shots around are necessary to complete a spherical panorama. It is very small and light-weight. Together with a matching pano head such as Nodal Ninja R1 and R10, it is the ideal portable set up for making a quick single row spherical panorama.


Due to small differences in flange distances between M43 and target cameras, a good adapter is not possible. Besides, the original lens hood will also need to be "shaved" to remove blockage of the lens angle of view. In the spirit of "We Try Harder", Fanotec offers an easy to use complete conversion tool kit for Sony E-Mount.

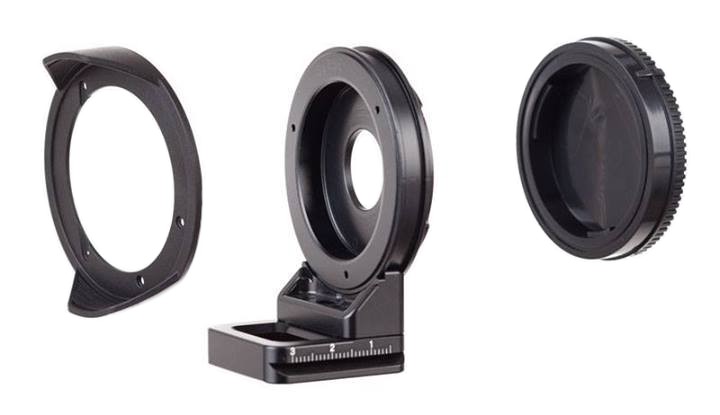

This kit includes:

  • Samyang 7.5mm replacement mount (Sony E-mount) with rear cap
  • Replacement hood with removal tool
  • LF-2 lens foot and LRP35 lens plate
  • Assorted tools for easy conversion

The replacement mount allows the lens foot to be installed at positions so that the camera sensor is either portrait, landscape or with diagonal aligned vertically.


Settings for Samyang 7.5mm E-mount converted:

  • R1 4 Shots Around
    • 0 deg LRP value 1.7
    • 5 deg LRP value 1.05
    • 7.5 deg LRP value 0.8
  • R10 4 Shots Around
    • 7.5 deg LRP value 0.35, use the line 1cm apart to read the value at 1.35
  • R20 4 Shots Around
    • 7.5 deg LRP value 0.85, use the line 1cm apart to read the value at 1.85
