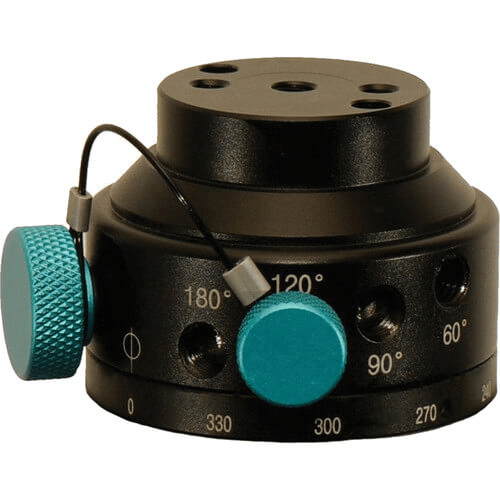

Advanced Rotator RD4 Factory Irregular

Advanced Rotator RD4 Factory Irregular
Fullscreen button
Product Variants1
1

Advanced Rotator RD4 Factory Irregular

US$39.95
Price: $99.95Save $60.00

15OFF at checkout
  • SKU: F9405X

During production, there are occasional coating flaws/ minor scratches on some finishes. The manufacturer deems these items as Factory Irregular (FIR), places a stamp on the product. ALL FIR's carry the same warranty as regular products. They are functionally the same.



Product QR codeProduct QR code

Download Documents


All User Guides and Manuals

Advanced Rotator RD4 has 4 different selectable click options, suitable for shooting with all fisheye lenses.

Features you'll find in this new class of rotators:

  • Precision CNC machined components.
  • Lubricated bearings for smooth rotation.
  • Laser engraved markings.
  • Detent interval (click stop) option can be changed on the fly.
  • More than 10 kg (22lbs) loading supported.
  • Detent interval can be changed in seconds on the fly.
  • Knob for locking rotation.
  • Ideal for making 360x180 full spherical panoramas.
  • Great in windy locations.
  • Very small nadir footprint.
  • Diameter of 52 mm (2 1/8") provides sufficient precision and stability while keeping the nadir footprint small.
  • The unique placement of knobs means that they will never appear in the spherical panos.
  • Compact and lightweight - only 225 grams (8oz).
  • 4 different degree stop increments (with equivalent number of stops around) include:
    • 60 (6 stops)
    • 90 (4 stops)
    • 120 (3 stops)
    • 180 (2 stops)

Package includes:

  • Advanced Rotator RD4
  • Advanced Rotator RD4 knob set (F1155)
  • Screw Adapter 3/8 - 1/4 (F9208)
  • Connecting Wire

Specifications:

  • Weight: 201 gr (with knobs)
  • Dimensions: Height - 40mm (1.57") x Diameter: 52mm (2.05")
  • Maximum weight load: 11kg (22lbs)
  • Ideal working weight load: approx. 5.5kgs (12lbs)
  • Metal: Anodized aluminum
  • Base Color = Non-glare black
  • Thread = base 3/8", top M6
  • Demarcations (reference tic marks) every 5 degrees

Note: Designed to mount on Nodal Ninja R10, R20, R1, RS1 using two M5 flat head screws, or on Nodal Ninja RS2 using two anti-twist screws and one M6 flat head screw. The mounting screws are supplied with the Nodal Ninja No Rotator Package.
