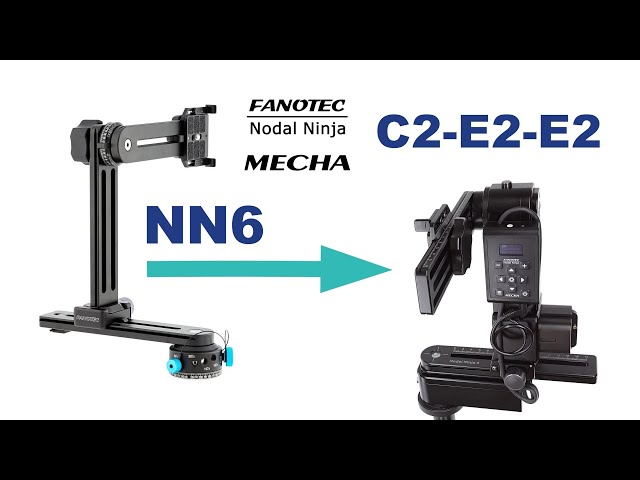

Customers who own Nodal Ninja mechanical panoramic heads often ask us what they need to transform those heads into dual-axis motorized heads. For example, how to transform an NN6 with RD10 and Nadir Adapter (F6002) into a Dual-Axis MECHA C2-E2-E2 with NN6 and Nadir Adapter (F9922)?
To get a quick overview of what the F9922 package includes, see the product page.

The F9922 package includes:
* Two MECHA E2 Rotators (F9901)
* One MECHA C2 Controller (F9911)
* One NN6 Lower Rail (F6028)
* One NN6 Upper Rail with Camera Mounting Plate and Knob (F6036, F6027)
* One Battery Holder and Extender for E2 Rotator (F9942)
* One Quick Release Nadir Adapter (F6026)
* One Carrying Case (F9986-2)
* Miscellaneous spare parts and extras for customization and creative use (not shown in the product image).

The MECHA Hard-shell Case is also not shown in the product image.
It is available in three variants for purchase as a separate product, in addition to being included in a package.

The shutter release cable and batteries and charger are not included in the box. So, ensure you add them to your order both with F9922 and also when purchasing F9922 parts separately to build a dual-axis MECHA.

Use the shutter release cables filter to check compatibility and choose the right cable for your camera.

Lithium-ion batteries cannot be shipped without equipment in the same package. Select the plug type before adding to cart the Dual-Channel Charger with LCD Display & 2 NP-F550 Type Batteries.

You do not need the NN6 Lower Rail, NN6 Upper Rail with Camera Mounting Plate and Knob, and the Nadir Adapter, as they are included in the F6002 package.

Regarding the rotators, you can also opt for two P1 rotators, or one P1 and one E2 rotator. E1 is a good choice for use with NN3 MK3 or NN3 MK2.

There are also useful accessories you can purchase, such as a PC Sync Cable for shutter release confirmation and a hot Shoe to PC Sync Adapter (for cameras without a PC Sync port).

You can add all the parts you need to your cart, then compare the price of the Dual-Axis MECHA C2-E2-E2 (F9922) with the cart total to decide what is best for you.

Don't forget that the shutter release cable and batteries and charger are essentials not included in the F9922 package.

Also, keep in mind that the Dual-Axis MECHA C2-E2-E2 comes assembled as upper and lower assemblies, which are easy to put together. Alternatively, if the parts are purchased separately, you will need to build the Dual-Axis MECHA following the instructions in this video: Installation Instructions for Dual-Axis MECHA C2-E2-E2 with NN6 (F9922).
This video is also useful for users who need to disassemble the unit for other configurations or applications.

Please contact us before placing an order if you are unsure about what parts you need to add to your current setup. We can also adjust your cart items after the order is placed, so feel free to contact us.
